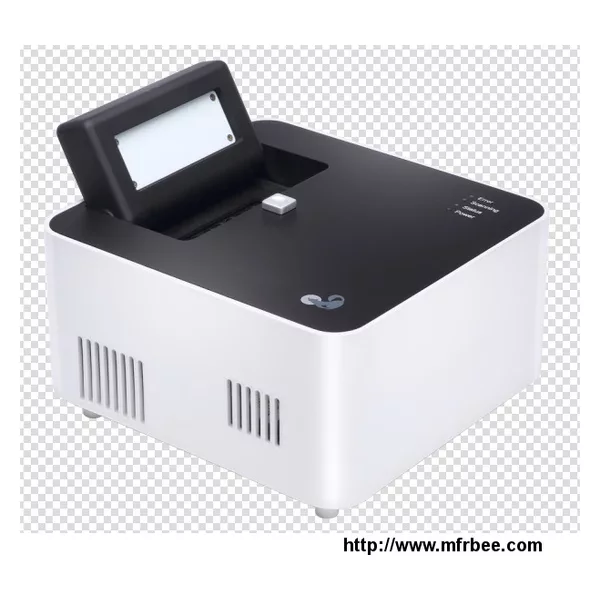

Mini-8 Real-time PCR Cycler

Mini8 Real-Time PCR Cycler is designed for molecular diagnostic market. It has a small footprint,
With high detection sensitivity. The machine has two channels, one is SYBR/FAM, and the other is ROX. The sample capacity is 8 × 0.2mL PCR tubes, and it is compatible with any commercial SYBR or TaqMan qPCR kits. The user interface on the computer is friendly and very simple to operate.

Specifications and Environmental Requirements:

Optical
Light Source: High Power LED
Detector: Photediodes

Thermal
Heating/cooling module: Peltier
Ramping Rate(Max.): 3ºC/s
Thermal Uniformity: ±0.2ºC
Thermal Accuracy: ±0.2ºC
Temperature Range: 4-100ºC

Operational
Sample Format: 8 wells
Reaction Volume: 10-150μL
Warm Up Time: 1min
Sensitivity of Detection: 1 copy
High Resolution Melt: Supported Resolution to 0.5ºC
Multiplexing: Detect up to 2 dyes simultaneously,470/520nm and 565/625nm(FAM/ROX)

Physical
Dimensions: 205×190×98 mm (L×W×H)
Weight: 2.1 kg

Environmental
Electrical: 12V,10A
Environmental Temperature Range: Operating:15ºC to 30ºC
Storage:10ºC to 60ºC
Environmental Humidity Range: Operating:15-90% relative Humidity
Storage:5-95% relative Humidity
