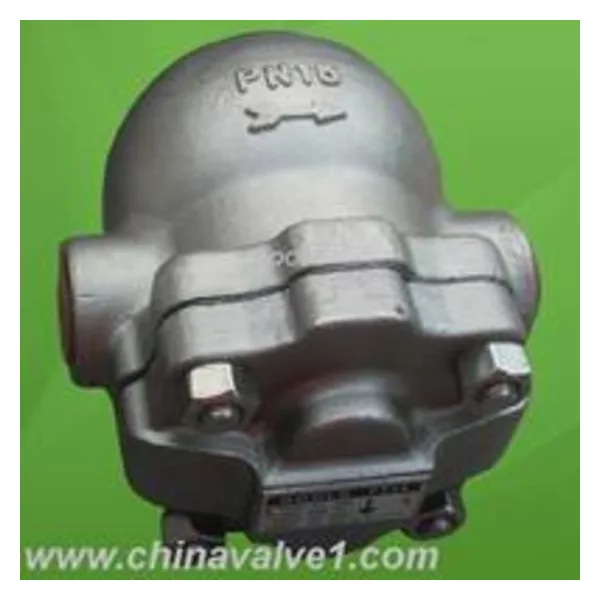

FT14 ball float steam trap (Threaded)
Product Quick Detail
- Packaging
- plywood case
- Delivery
- 1-2weeks
Specifications
FT14 ball float steam trap (Threaded)
Quick Details for FT14 Ball Float Steam Trap
FT14 Ball Float Steam Trap Structural characteristic :
1.The valve adopts two kinds of sealing,e,g,balance double valve seat and single valve seat with reliable closedown and long life.
2.There's always condensate water available in front of the valve with reliable water sealing and non-leakage of steam.
3.No noise before operation in favor of environmental protection.
4.At the beginning of ventilation,all the valves start and lowtemperature condensate water and air are rapidly expelled to greatly shorten the start time for equipment.
5.Internal component is made of stainless steel, corrosion and cavitation erosion proof.
FT14 Ball Float Steam Trap main technical parameters and indexes of performance
| Nominal pressure | PN16 |
| Maximun design pressure(PMA) | 16bar g @ 120 |
| Maximun design temperature(TMA) | 250 @ 13bar g |
| Minimun design temperature(TMI) | -10 |
| Maximun upstream pressure for saturated steam service(PMO) | 14bar g |
| Maximun operating temperature(TMO) | 250 @ 13bar g |
| Minimun operating temperature(TMIO) | 0 |
| Maximun differential pressure( PMX ) | FT14-4.5 4.5bar |
| FT14 -10 10bar | |
| FT14 -14 14bar | |
| Maximum cold hydraulic test pressure | 24bar g |
FT14 Ball Float Steam Trap material of main component
| Name of component | Material of component |
| Valve body, valve cover | WCB |
| Floating ball | stainless steel |
FT14 Ball Float Steam Trap connecting dimension
| DN | A | B |
| 15 | 121 | 107 |
| 20 | 121 | 107 |
| 25 | 150 | 107 |
