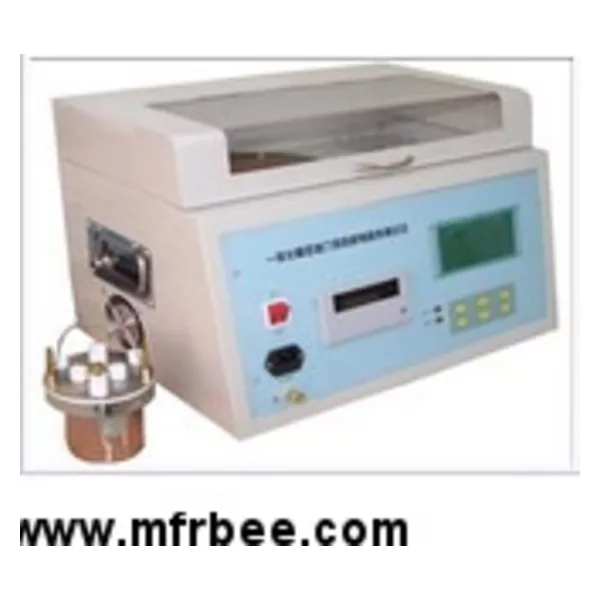

Automatic Insulating Oil Resistivity Testing Systems

1.1Functions

1. Tangent delta value measurement for insulating oil

2. Capacitor value measurement for insulating oil

3. Temperature control for insulating oil in test vessel

4. Print test results by micro printer

1.2Technique index

1. High voltage output: 0~2200V resolution 200V error <2%RDG+0.2%FS

2. High voltage output capacity: 50VA

3. Temperature control unit power consumption <1500W

4. Temperature adjust range <100C. Control error <1C

5 Temperature measurement error< 0.5C

6 Tangent delta measurement error < 1%RDG+0.02%

7 Capacitor measurement error < 1%RDG+0.5pf

8. Power supply: AC220V±10 % 50Hz/60Hz

9 Environment temperature: 0~50°C

10 Humidity: ≤80%RH

11 Size: 450mm´360mm´310mm

12 Weight:< 18kg
