Lgz20 Hydraulic Foot-step Bored Drilling Rig

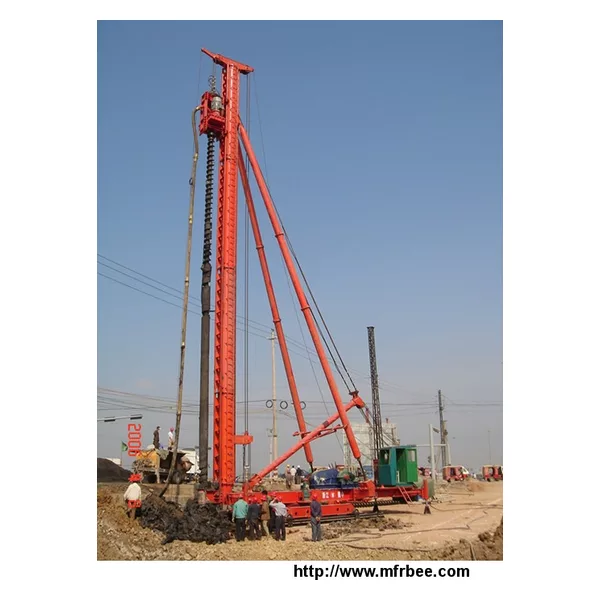

LGZ20 Hydraulic Foot-step Bored Drilling Rig

Product General:

• Self-developed new series piling machine by Hunan New Timehope—LGZ seriea hydraulic foot-step half-screw drilling machine.
• Including Pile Rig & Drilling System.
• Three-point support pillar, safe, reliable & stable.
• Drilling system adopting advanced constant big torque motor and synchro-drilling controlling system.
• Convenient operation & maintenance, functions dependable, low noise, no vibration, no earth fetching, no slop, high adaptability.
• High precision of screw pile, quality reliable.
• Suitable for various layer of soil, clay, sandy stratum, intensive weathered layer, and pebble bed.

Product Features：
Convenient operation & maintenance, functions dependable, low noise, no vibration, no earth fetching, no slop, high adaptability.
High precision of screw pile, quality reliable.
Drilling system adopting advanced constant big torque motor and synchro-drilling controlling system.

Product Parameter:

Item	Unit	LGZ-20
Drilling diameter	mm	400-600
Drilling depth	m	20
Motor power	kw	45×2
Ma×. motor torque	Kn.m	57.2
Ma×. drilling rod speed	r/min	15
Allowable drill pulling force	kN	300
Main windlass single tightwire lifting	kN	50
Ma×. driving force	kN	200
Hydraulic system working pressure	MPa	16
Column height	mm	22
Long boat pace	m	1600
Platform rotary angle	degree	360
Platform rotary speed	r/min	0.6
Gradeability	degree	3
Machine weight	t	50
Working dimension (L×W×H)	m	11×6×25
Transportation dimension(L×W×H)	m	10×3×2.5
