Feature

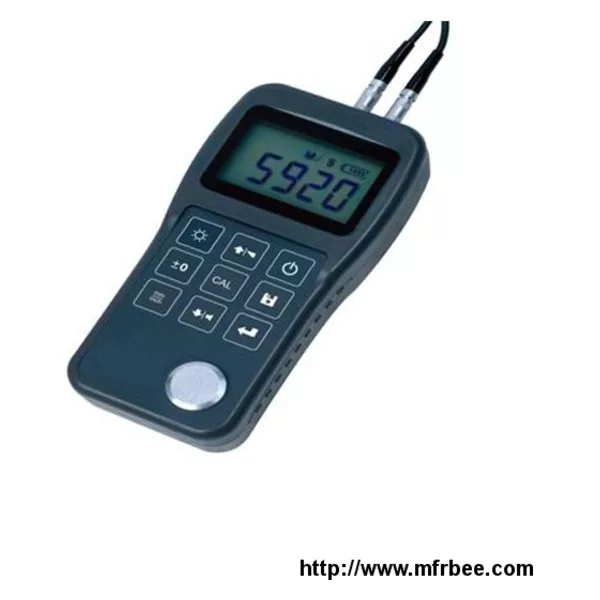

Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications.Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).
Measuring Range | 0.75mm-300mm(in steel) |
Sound Velocity | 1000~9999 m/s |
Resolution | 0.1mm |
Units | mm/inch (selectable) |
Memory | 20 groups (100 files / group) |
Accuracy | ± ( 0.5%Thickness+0.04 ) mm |
Alarm | preset upper and lower limit |
Work voltage | 3V( 2 AA alkaline battaries) |
Work mode | Single point and scan |
Interface port | RS232 |
Dimensions | 150mm*74mm*33mm |
Weight | 245g |
Display | LCD with backlight |
Continuous working period | 100 hours (with backlight off) |
