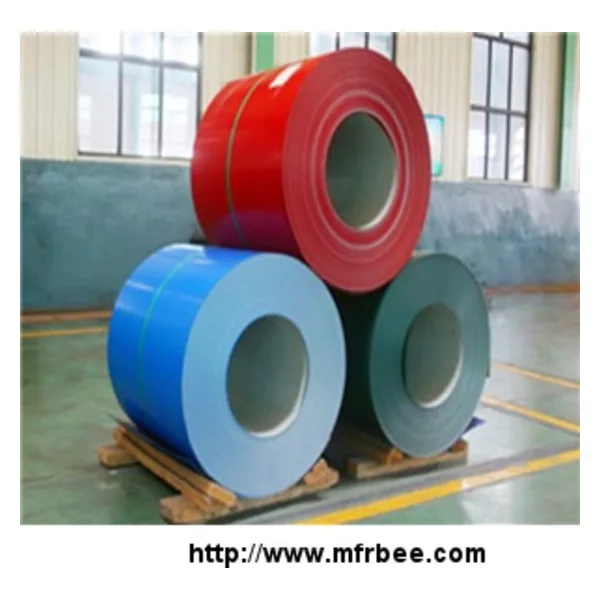

Painted galvanized flat steel plate

Place Of Origin
China
Packaging
According to product specification
Delivery
15 Days

1.thickness: 0.17-0.6mm

2.width:1000/1200/1250mm

3.weight:2-7ton

4.ISO9001:2008

SPECIFICATIONS:

Name painted galvanized flat steel plate
Type hot dipped zinc coated steel sheet, Cold rolled steel sheet, hot dipped A-Z coated steel sheet
Paint Color Based on RAL No. or customers' color sample
Paint Polyester , and your special requirement to be discussed
Paint Thickness 1 Top side: 25+/-5 micron

2 Back side: 5-7micron

Or based on customers' requirement

Steel Grade Base material SGCC or your requirement
Width 1000mm,1200mm,1250mm

3 For the thickness of 0.14-0.34mm, the width can be 1000 or 1200mm

4 For the thickness of 0.35-0.60mm, width can be 1000/1200/1250mm

5 For the thickness of 0.61-1.00mm, the width is 1000 mm only.

6 For the other width of your project, it can be discussed.

Thickness Range 0.17mm-1.50mm
Zinc Coating Z60-Z275
Coil ID 508mm or 610mm
Coil Weight 3-10MT, or as per customers' requests
Technique Cold Rolled
Surface Protection PE,PVDF,SMP,HDP,etc
Surface Treatment Galvanized,Chromated,Unoiled/Oiled,Bright Finished,Spangle,Fingerprint Resistance.
Application General Use,Roofing, Corrugated Roofing Making,Outside of the buildings,

Structure,Tile Row Plate, Wall, Deep Drawing and Deep Drawn

wendajiancaiwangshan AT wendajiancai dot com

Packaging & Delivery

Packaging Details:standard packing for sea freight

Delivery Detail:15 days after received the deposit
