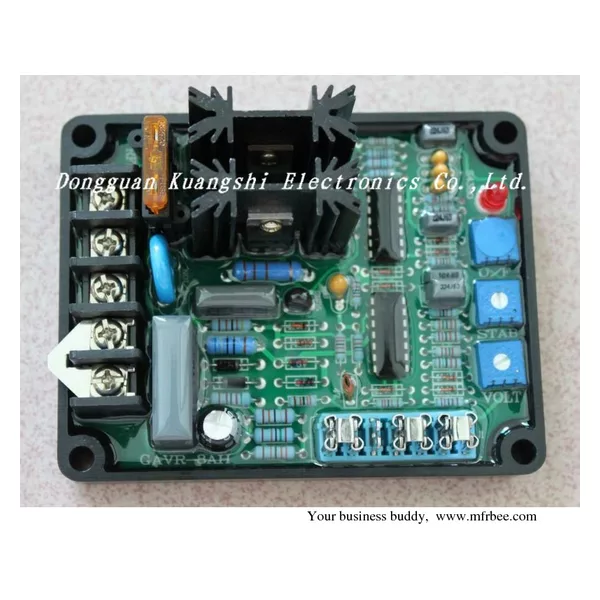

GAVR 8A Automatic Voltage Regulator

1.GAVR 8A Automatic Voltage Regulator

2.Generator automatic voltage regulator

3.High quality, Fast delivery

GAVR 8A

*SensingInput Voltage 220/400VAC,1phase 2wire

*Power Input Voltage 180~240VAC, 1phase 2wire

*Output Voltage input

Current Continuous 6A

Intermittent 6A for 10SEE

Resistance Min.10Ω Max 100Ω

*Voltage Build-up esidualvolts at AVR teminal>5VAC

*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer

*Unit Power Dissipation Max.8Watt

*Under Frequency Protection 60Hz system presets knee point at 57Hz

*(Factory Settings) 50Hz system presets knee point at 47Hz

GAVR8A
GAVR12A
GAVR15B
general avr

MARATHON AVR ,SE350
Leroy Somer,R230,R438,R448,R449
Voltage regulator SX440,SX460, AS440
