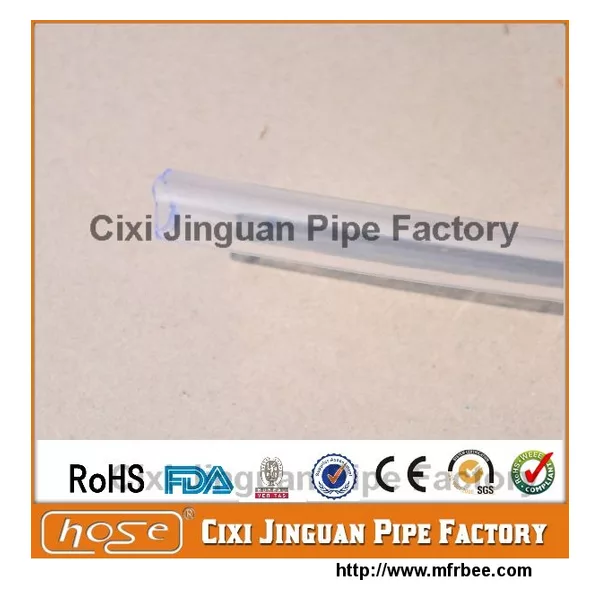

Food Grade Clear Vinyl Tubing
Product sourcing details
- Application
- Conveying water,weak chemical,oil and other liquid
- Characteristic
- Lightweight,durable,flexible,no smell,non-toxic,food/medical grade
- Color
- Clear or according to customer's requirements
- Price Terms
- FOB,CIF,CNF
- Main Export Market
- America, Peru, Russia, Africa, Southeast Asia, Australia etc.
- Packaging
- PE plastic film,braided bag,carton or according to your requirements
Supplier: Cixi Jinguan Pipe Factory
Purchasing information
- Lead time
- Within 30 days after receipt of the deposit
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications
Detail:
1.Application:Widely used for conveying water,oil,weak chemicals and other liquids under low pressure condition in foodstuff,sanitary,industry,agriculture and aquatic animals equipment etc.
2.Tube:Made from non-toxic clear flexible pvc
3.Characteristics:Flexible,transparent and corrosion resistant with applications are widely
4.Temperature range:-5℃~+65℃
Specification:
1.Inside diameter
inch:1/4",5/16",3/8",1/2",5/8"
mm:6;8;10;12;15
2.Outside diameter(mm):8;10;12;15;18
3.Wall(mm):1.0;1.0;1.0;1.5;1.5
4.Working pressure(Mpa):0.15;0.15;0.15;0.1;0.1
5.Burst pressure(Mpa):0.45;0.4;0.4;0.3;0.3
6.Length max.(m):100;100;100;50;50
7.Weight(kg/m):0.029;0.037;0.045;0.083;0.101
8.Packing measurement D*H(mm):380*110;400*100;420*110;120*120;420*130
1.Application:Widely used for conveying water,oil,weak chemicals and other liquids under low pressure condition in foodstuff,sanitary,industry,agriculture and aquatic animals equipment etc.
2.Tube:Made from non-toxic clear flexible pvc
3.Characteristics:Flexible,transparent and corrosion resistant with applications are widely
4.Temperature range:-5℃~+65℃
Specification:
1.Inside diameter
inch:1/4",5/16",3/8",1/2",5/8"
mm:6;8;10;12;15
2.Outside diameter(mm):8;10;12;15;18
3.Wall(mm):1.0;1.0;1.0;1.5;1.5
4.Working pressure(Mpa):0.15;0.15;0.15;0.1;0.1
5.Burst pressure(Mpa):0.45;0.4;0.4;0.3;0.3
6.Length max.(m):100;100;100;50;50
7.Weight(kg/m):0.029;0.037;0.045;0.083;0.101
8.Packing measurement D*H(mm):380*110;400*100;420*110;120*120;420*130
- Company: Cixi Jinguan Pipe Factory
- Country: China (Mainland)
- Business Type: Manufacturer
- Market: America,Africa,Peru,Australia,Russia,Southeast Asia etc
- Founded Year: 2008
- Address: Erheng Road,Changhe Industrial Zone,Cixi,Zhejiang,China(Mainland)
- Contact: Bonnie Xu
