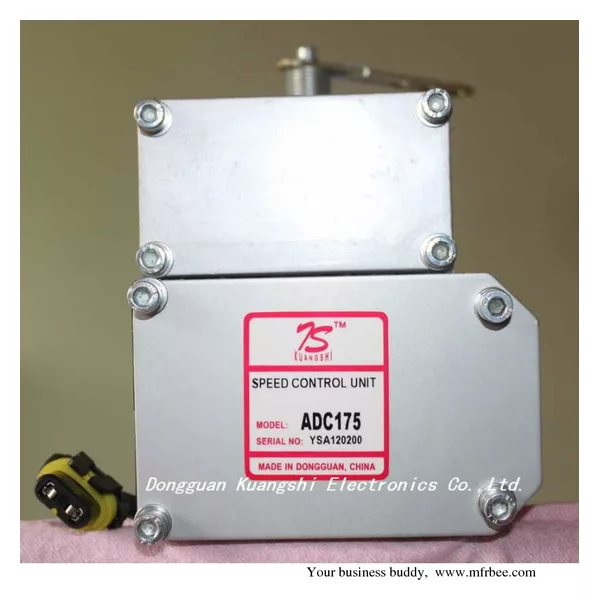

ACD175 Series Electric Actuator

1.The 175 SERIES electric actuator is designed to mount directly on a Bosch "P" size fuel injection

pump, with a right hand, rack, in palce of the mechanical governor. When the 175 actuator is

installed on the fuel pump, an optimum performance, long life fuel control system results. An

external fuel shut off lever is provided to manually override the actuator's control. Also provided

is an adjustable internal maximum fuel limit.

2.The 175 Series Electric Actuator can control fuel pumps of up to 8 cylinders. The actuator was

designed with two isolated chambers. The upper chamber is wet with oil and contains the

connection to the fuel rack and an optional manual shut off mechanism. The sealed lower chamber

contains the electromagnetic components.

3.This design eliminates the possibility of magnetic particles or other oil contaminants interfering

with the operation of the electric actuator. Unreliable devices such as bellows and sliding seals are

not used so that no maintenance is required. The designed life of the actuator is typically longer

than that of the engine.

4.Specifications
