Double Wire Mesh Fence - Galvanized and PVC Coated

Packaging: N/A

Delivery: 15 Days

656 Double Wire Mesh Fence and 868 Double Wire Fence

Double wire mesh fence, also called 2D fence panel, is a sturdy fence constructed by double horizontal wires and a vertical wire welded together. The strong structured double wire fence has galvanized, PVC coated or powder coated surface. It is durable enough to resist corrosion, rust. Moreover, it is usually used in commercial, industrial buildings, school buildings, hospitals, airports and military sites for security requirement.

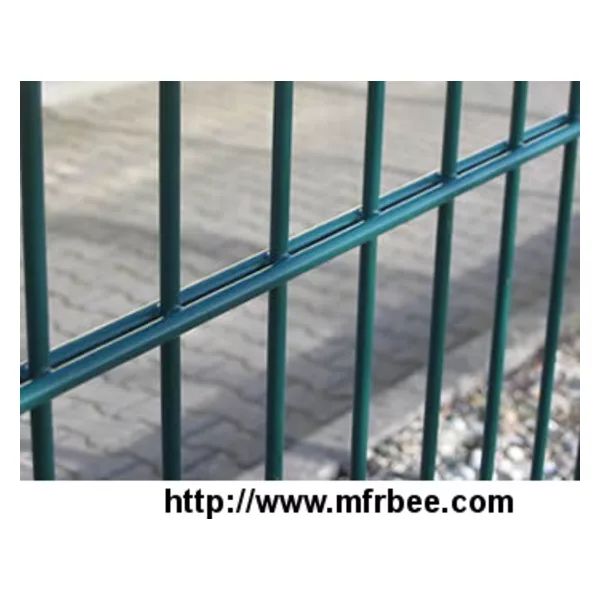

The detail of green powder coated double wire mesh fence

Sturdy structured green double wire mesh fence

Features:

Stable and robust structure constructed from double horizontal wires and vertical wires.

Hot-dipped galvanized, electro galvanized, PVC coated, powder coated surface treatment makes double wire mesh fence durable and resist corrosion, rust.

Beautiful colors are available in green, black, blue, red, white, etc.

Various applications for all possible areas.

Simple installation.

Maintenance-free.

Long service life.

Specifications:

Material: low carbon steel wire, stainless steel wire, galvanized wire.

Surface treatment: hot-dipped galvanized, electro galvanized, PVC coated, polyester coated, powder coated.

Wire diameter:

vertical wire: 5mm, 6mm.

Horizontal wire: 6mm, 8mm.

Standard colors: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white or other colors according to your requirement.

Panel height: 63mm - 243mm.

656 Double Wire Fence Specification

Product name Mesh size (mm) Wire thickness Coating Panel width (m) Panel height (m) Panel weight (kg)

Double wire panel 50 × 200 Vertical wire: 1 × 5mm Galvanized; Polyester Coated 2.5 0.63 9.00

0.83 11.50

1.03 14.20

1.23 16.80

1.43 19.30

Horizontal wire: 2 × 6mm 1.63 21.90

1.83 24.60

2.03 27.10

2.23 29.20

2.43 31.70

868 Double Wire Fence Specification

Product name Mesh size (mm) Wire thickness Coating Panel width (m) Panel height (m) Panel weight (kg)

Double wire panel 50 × 200 Vertical wire: 1 × 6mm Galvanized; Polyester Coated 2.5 0.63 14.60

0.83 18.80

1.03 23.00

1.23 27.10

1.43 31.30

Horizontal wire: 2 × 8mm 1.63 35.40

1.83 39.50

2.03 43.70

2.23 48.00

2.43 52.00

Post Specification

Type A - RHS Post

Profile (mm) Thickness (mm) Surface treatment Length (m) Base plate Rain hat

60 × 40 2.0 Galvanized; polyester powder coated 1.1 - 3.0 or on the basis of the panel height Available Plastic or metal

80 × 40 2.5

Type B - peach Post

Profile (mm) Thickness (mm) Surface treatment Length (m) Base plate Rain hat

60 × 90 1.2 Galvanized; polyester powder coated 1.1 - 3.0 or on the basis of the panel height Available Plastic

70 × 100 1.5

Applications:

Double wire mesh panels have a wide range of applications. They can be used in

School

Play ground

Parks

Sports field

Stadium

Warehouse

Workshops

Public buildings

Industrial buildings

Airport and military sites

Other high security sites

White powder coated double wire fence used to protect public road

Sturdy powder coated double wire fence for public road protection

Green powder coated 2D fence panel used to enclose football field

Green 2D fence panel is used for sports field to protect football going out of the fence and ensure people's security outside the panel
