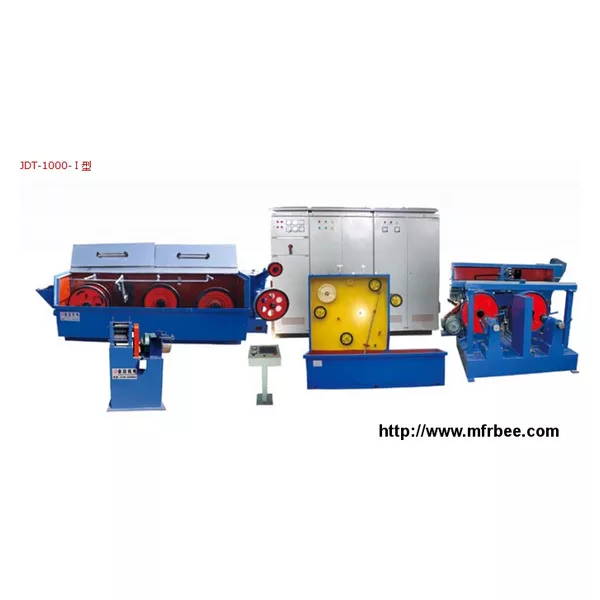

JDT--1000--1 Drawing Machine Continuous Annealing Unit
Product sourcing details
- Place Of Origin
- China
- Packaging
- 1
- Delivery
- 15 Days
Specifications
Main Features:
Drawing speed by frequency conversion.
PLC control wholly, mechanical speed synchronise with electrical speed.
Double spoo;er with auto-bobbin change,high effciency.
Smallfootprint,easy to operate,low production cost.
Machine model : JDT--1000--1
Inlet dia.(mm) : 8.00
Outlet dia(mm) : 1.20--3.00
Drawing die number : 13
Main motor(KW) : 110(AC)
Cone form : Four driving wheels
Max drawing speed : 8m/s
Annealing Type: Tubular Type Annealing
Annealing current : 0-1800(DC)
Annealing voltage(V) : 0-55(DC)
Conductive mode : Carbon brush
Double take-uo motor power(KW) : 11*2
Subsequent equipments : Ring take up machine Single take up machine
Drawing speed by frequency conversion.
PLC control wholly, mechanical speed synchronise with electrical speed.
Double spoo;er with auto-bobbin change,high effciency.
Smallfootprint,easy to operate,low production cost.
Machine model : JDT--1000--1
Inlet dia.(mm) : 8.00
Outlet dia(mm) : 1.20--3.00
Drawing die number : 13
Main motor(KW) : 110(AC)
Cone form : Four driving wheels
Max drawing speed : 8m/s
Annealing Type: Tubular Type Annealing
Annealing current : 0-1800(DC)
Annealing voltage(V) : 0-55(DC)
Conductive mode : Carbon brush
Double take-uo motor power(KW) : 11*2
Subsequent equipments : Ring take up machine Single take up machine
