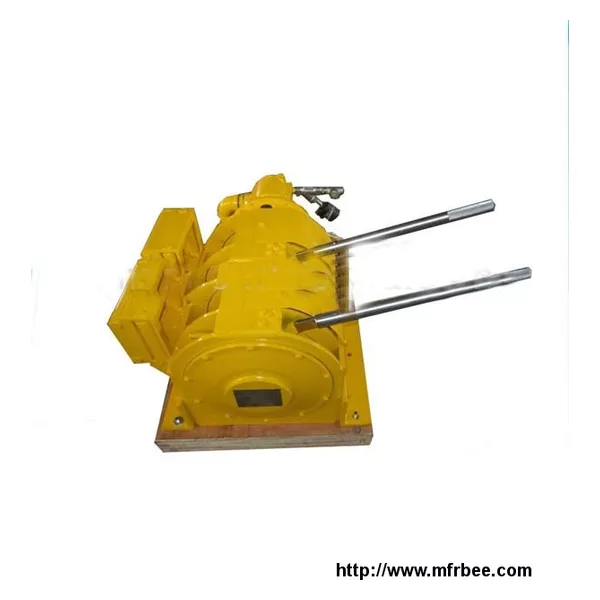

Double drum Air Scraper winch
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 15 Days
Specifications
Double drum Air Scraper winch
15KW-explosion proof scraper winch, Double drum Air Scraper winch,Air Scraper winch
chinacoal07
Specifications
15KW-explosion proof scraper winch with MA ceitification
1.Professional manufacturer of mine winch with MA certification
Product Introduction
15KW-explosion proof scraper winch with MA ceitification
Scope of application:
The scraper winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500; Not be the hoisting machines.
The main components of the winch :deceleration device, main roll, Vice reel, control devices, wire guiding device and motor. These parts were installed inside and outside the shell, the shell is a good steel parts, both to protect the supporting role, but also to bear all the load. It is connected on the basis of two slide bolt.
Binoculars winch a master reel (mounted on the right, ie, close to the motor side), a secondary reel (mounted on the left).
A master reel (mounted in the middle) in the three-drum winch, two vice reel (mounted on the left and right), three drum winch can be mounted two main reel (mounted on the right and middle), a vice volume cylinder (mounted on the left), each roll corresponding control device and a wire rope guide.
Main technical parameters
| Name | Parameter | Unit | |
| Working pressure | 0.69-1.0 | MPa | |
| Traction | 8 | kN | |
| Max rope speed | 32 | m/min | |
| Air motor | Rated power | 7.5 | kW |
| Rotating speed | 1200 | rpm | |
| Drum | Diameter | 205 | mm |
| Length | 150 | mm | |
| Wheel flange diameter | 350 | mm | |
| Wire-rope diameter | 9.3 | mm | |
| Rope capacity | 45 | m | |
| External dimension | L × W × H | 920×675×475 | mm |
| Working condition | Temperature | -10 +60 | °C |
| Humidity | 100% | ||
| Wind speed & wave height | 6 / 2 | level/M | |
| Weight | 360 | kg |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Europe,Americas,Oceania
- Founded Year:2001
- Address:No.11, North of Kaiyuan Road, High-tech Zone, Jining City
- Contact:mike jiang
