JQY-3* 12 Pneumatic - Air Winches and Hoists
Product sourcing details
- Place of Origin
- China (Mainland)
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
Supplier: China coal group
Purchasing information
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications
JQY-3* 12 Air winch Crane ,Pneumatic - Air Winches and Hoists chinacoal07
Specifications
JQY series air winch is driven by air motor,accomplish the traction and hoist function.
Product Introduction

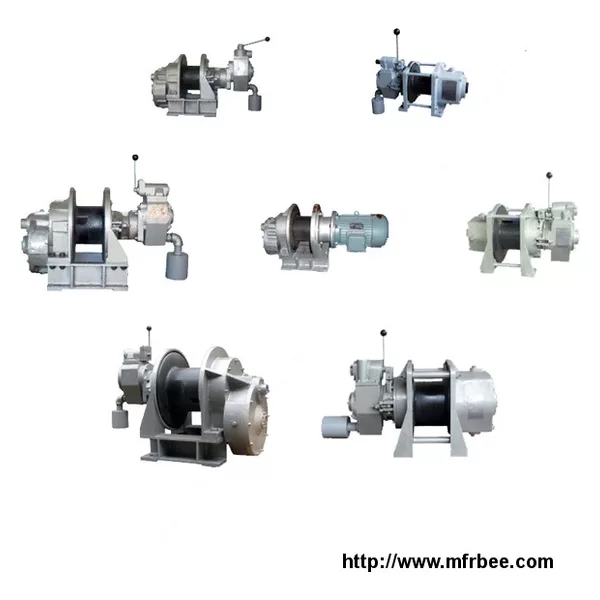

Air Winch
JQY series pneumatic winch is a vane type pneumatic motor as driving force to pass power through the planetary gear reducer to the drum for lifting heavy objects. Motor and reducer are connected to both sides of the drum, and the brake of winch is by braking motor which is reliable. The winch can make light weight, compact structure, simple operation, easy maintenance and can do stepless speed regulation within a certain range. In the absence of compressed air can be the case of manual operation.
Main Parameter
Technical Parameter of Pneumatic Winch | ||||
Type | JQY-3x12 | JQY-5X18 | JQY-10X16 | |
Safe working Loads S.W.L.(Kg) | 300 | 500 | 1000 | |
Hoisting speed(M/MIN) | 0-12 | 0-18 | 0-16 | |
Wire rope DIA.(φ)×Capacity(m) | 6 X 45 | 8 X 50 | 10 X 50 | |
Air motor (KW)×(rpm) | 1.5 X 4000 | 3 X 3200 | 6 X 3200 | |
Air pressure(MPa) | 0.6 | 0.6 | 0.6 | |
Gas volume(m3/min) | 2.1 | 4 | 8 | |
Air input size(G”) | 1/2 | 3/4 | 1 | |
Dimensions | A x B | 190 x 190 | 270 x 218 | 320 x 250 |
C x D | 222 x 234 | 324 x 266 | 390 x 300 | |
E x F | 130 x 250 | 176 x 338 | 215 x 410 | |
G x M | 390 x 490 | 505 x 580 | 570 x 680 | |
d1 x d2 | 114 x 210 | 165 x 300 | 190 x 355 | |
N x φd | 4 x φ14 | 4 x φ14 | 4 x φ24 | |
L | 114 | 120 | 140 | |
H | 120 | 120 | 160 | |
Net weight(Kg) | 45 | 85 | 160 | |
