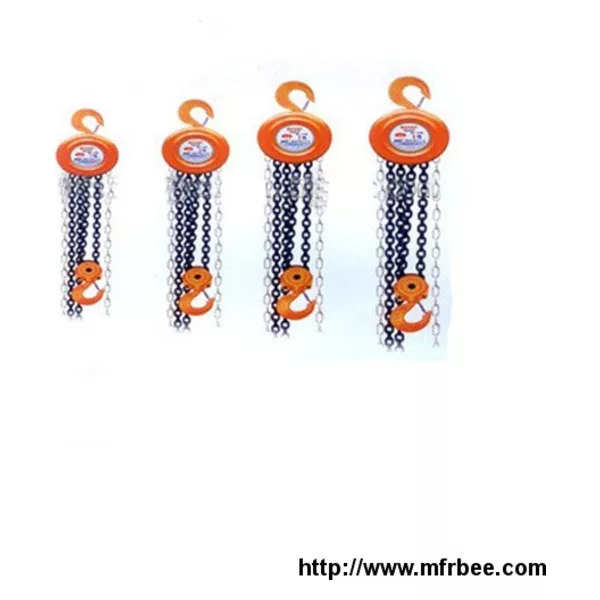

hand operated chain hoist
Product sourcing details
- Place of Origin
- China (Mainland)
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
Supplier: China coal group
Purchasing information
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications
Keyword: hand chain hoist,chain hoist chinacoal07
Product Introduction
2013 hot sale Hand chain hoist
is a kind of widely used and portable manual operating hoisting machine,especially widely used on no power and liquid homework. It is popular for handing it in the load-bearing structures, steel beam, tripod, rod or the trailer .
Main Parameter
Model |
| CC-0.5A | CC- 1A | CC-1.5A | CC-2A | CC-3A | CC-5A | CC-10A | CC-20A | |
Capacity | tons | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
Standard lift | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | |
Running test load | Kn | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 150 | 300 | |
Effort required to lift rated load | N | 231 | 309 | 320 | 360 | 340 | 414 | 414 | 414x2 | |
Strands of load chain |
| 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
Load chain diameter | mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | |
Dimensions(mm) | A |
| 131 | 140 | 161 | 161 | 161 | 186 | 207 | 215 |
B |
| 127 | 158 | 174 | 187 | 199 | 253 | 398 | 650 | |
C |
| 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | |
D |
| 35 | 35.5 | 45 | 42.5 | 50 | 64 | 85 | 110 | |
K |
| 30 | 28 | 36 | 33.5 | 40 | 50 | 64 | 85 | |
Net weight | kg | 10 | 12 | 19 | 20 | 27 | 45.5 | 83 | 193 | |
|
|
|
|
|
|
|
|
|
| |
