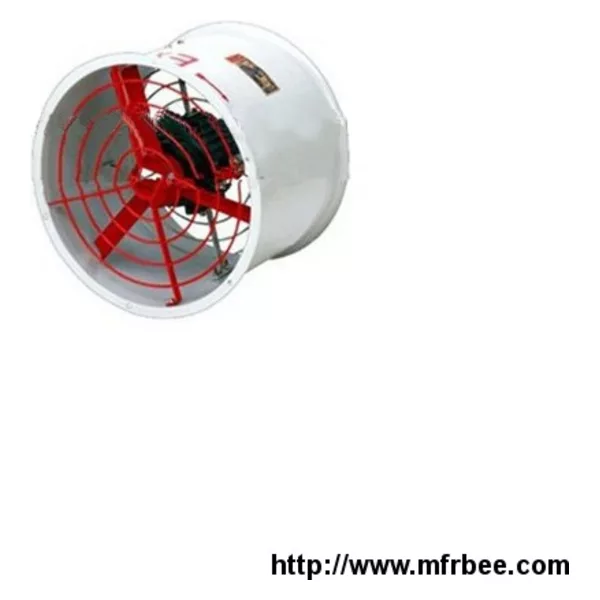

Explosion Proof Mining axial flow Fan
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 15 Days
Specifications
Keyword: Explosion Proof Mining axial flow Fan,Explosion Proof Fan chinacoal07
Specifications
CBF Explosion Proof small Explosion Proof Mining axial flow Fan 1,Ex-mark:Exd II BT4
2,Rated voltage:AC220V/380V
CBF Explosion Proof Mining Fan
1,Ex-mark:Exd II BT4
2,Rated voltage:AC220V/380V
3,Wind cylinder :Superior quality steel plate
CBF Explosion Proof Mining Fan :
1, Designed for Explosive atmosphere Zone 1, Zone 2
2, Designed for Groups IIA, IIB, IIC, Temperature classes T1~T4
3, Designed for sites with explosive atmosphere, such as petroleum exploitation, refinery, storage, chemistry, medicine, military facilities, etc.
CBF Explosion Proof Mining Fan:
1, Explosion proof axial flow fan is composed of explosion proof motor, fan blade, wind cylinder, etc.
2, Wind cylinder is welded of superior quality steel plate, die casted fan of aluminum alloy with high pressure electrostatic plastic-sprayed surface.
3, Mounting mode has four ways can be chosen: Bracket type, pipe type, post type, fixed type.
4, Steel pipe wiring and cable wiring.
CBF Explosion Proof Mining Fan Technical parameters:
| Model No. | Impeller dia(mm) |
Wind
(m³/h) |
Power (W) | Main-role rotary No. (r/min) |
| CBF-300 | 300 | 2280 | 180 | 1450 |
| CBF-400 | 400 | 2880 | 370 | 1450 |
| CBF-500 | 500 | 5700 | 550 | 1450 |
| CBF-600 | 600 | 8700 | 750 | 1450 |
1,Explosion protection: Exd IIBT4
2,Rated voltage: AC 220/380V
3,Main shaft revolution:1450 r/min
4,Corrosion proof grade:WF1
5,Ingress thread specification:G3/4"
6,Cable's outer diameter:9mm~14mm
7,Compliance with: GB 3836.1,GB 3836.2,IEC60079-0,IEC60079-1
