HP1000 12V DC Mini Truck Crane/Electric Hoist
Product sourcing details
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
Product Introduction chinacoal05

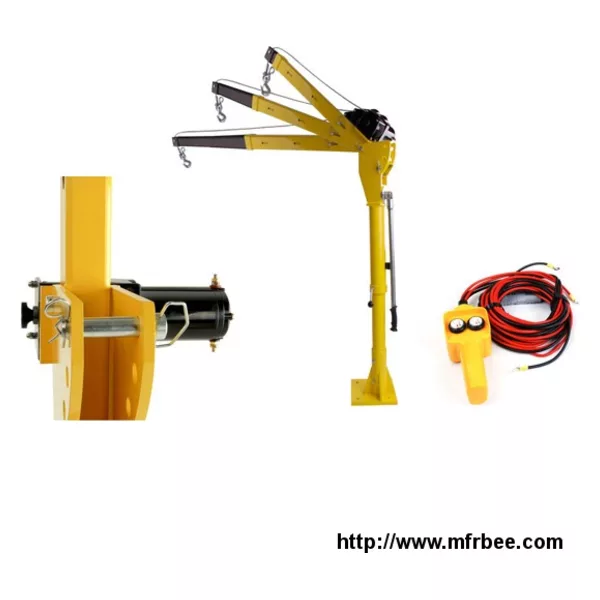

HP1000 is one of our professional products, with 12 volt DC as the power. It is widely used in pick -up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required, HP1000 is a good helper for lifting goods equal to or less than 660lbs in weight.
Main Parameter
Model | HP1000 |
Max Single line lifting capacity | 500kg |
Max Double line lifting capacity | 800kg |
Lifting Height max. Std. | 1940mm (base to hook ) |
Reach Max | 1490mm (from center to rotation ) |
Rotation (continuous) with Brake | 360 Manual |
Lifting Cable | 4.8mmx4.5m -1pc (for single line lifting ) |
Lifting Cable | 4.8mmx5.5m -1pc (for double line lifting ) |
Line speed with No load | 3.6m/min single line |
Power requirements | 12V DC 125 amps |
Switch Cable | 4.2m |
Mounting Base | 250*250*18mm |
Mounting Bolt Hole Pattern | 170*170mm |
Finish | Powder Coated |
Net Weight | 58.5kg |
