GD-0613A Asphalt Breaking Point Tester

Product sourcing details

Packaging: Standard wooden case and carton according to customer's requirement

Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.

Measuring Standards:

1. T0613 Asphalt Breaking Point Test (Fraass Methods)

2. JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.

Introduction:

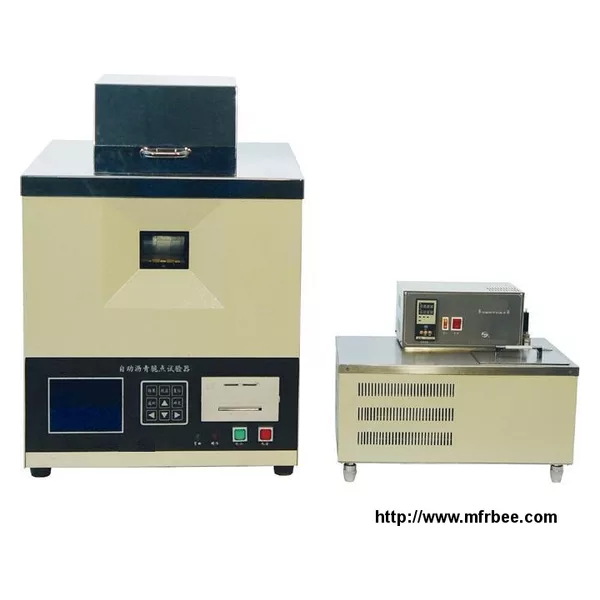

GD-0163A asphalt lab equipment breaking point tester is suitable to determine Fraass Breaking Point of bituminous materials.

Features:

1. The instrument can make determination for 3 pieces of samples at the same time,

2. Calculate the average value of three test data.

3. The instrument uses computer to control cooling rate and the instrument is equipped with a printer to print out test data and a RS232 output port.

Technical parameters of Breaking Point Tester

No	Name	Parameter	Remark
1	Power Supply	AC220V±10%, 50Hz
2	Cooling Method	by water
3	Cooling Rate	1°c±0.5°c/min
4	Temperature Measuring Range	-27~25°c
5	Temperature Measuring Accuracy	±0.5°c
6	Steel Sheet Size	41×20×0.15mm
7	Ambient Temperature	room temp.~30°c
8	Relative Humidity	≤85%
9	Power Consumption	≤450W
