Wire Decking with High Load Capacity

Wire Decking Decrease Fire Hazard

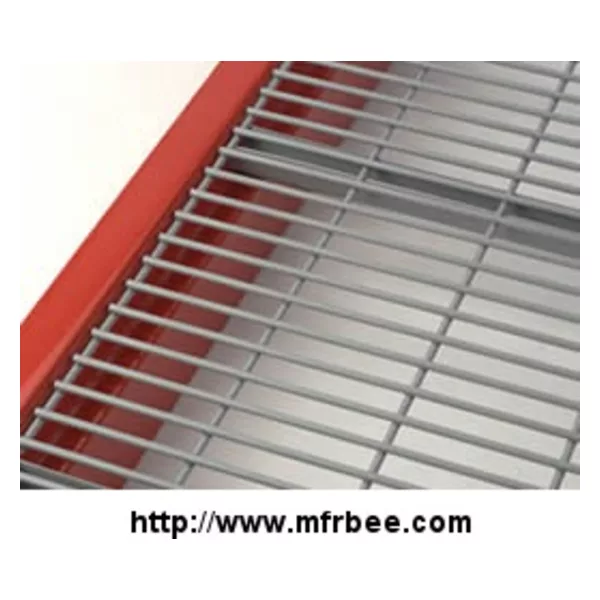

TAWINER wire decking also called wire pallet, is a kind of mesh pallet welded by high strength steel wires or other steel wires. It's structure is flat and solid, reinforced by support channels while spanning the space between the rack beams. Due to the loading capacity demand, our wire decking has high rigid and toughness to ensure the security of goods. TAWINER wire decking is safer than solid shelf and lighter than wooden pallet, and they are widely applied to warehouses, logistic distribution centers and so on.

Classifications:

Flared channel wire decking: it is also known as the universal decking. The two ends of the support channels are flared flat, which is easy to install on to the rack beams, and the sides of the wire decking waterfall over the rack beams, so as to fasten the wire decking with the beams. This kind of wire decking structure can support a very high loading capacity.

Flared channel wire decking has stable structure and can bear high loading capacity.

Inverted flared channel wire decking has sturdy structure and can be firmly attached to the rack beams.

Step channel wire decking is the most popular design, and it's structure makes it easy to set onto the step place. Two kinds of step channel wire decking are available: standard step channel wire decking and inverted step channel wire decking, and you can choose outside waterfall or inside waterfall.

Step channel wire decking is the most popular wire decking, it is easy to drop into the step place.

Inverted step channel could avoid the accumulation of dust and dirt, so as to keep the wire decking clean.

Flat wire decking is convenient for hand loading and the powder coated surface can help it resist rust and corrosion.

Flat wire decking is easy for hand loading, and it is widely used for all brands of boltless shelving, which is the most economical one. Flat wire decking usually has hot dipped galvanized surface to resist rust and corrosion. Since it's light weight and easy operation, flat wire decking has been replacing the particle board decking in warehouse and logistic distribution center.

Other two kinds of waterfalls:

Inside waterfall structure makes it convenient to stick labels onto the beam face and provides a clean look.

Reverse waterfall wire decks prevent the falling or missing of boxes and keep goods right in their places.

Specifications：

• Materials: high strength steel wires, stainless steel wires.
• Wire diameter: 4mm - 8mm.
• Mesh gauge (mm): 25 × 25, 50 × 25, 100 × 25, 50 × 50, 50 × 100, 100 ×100.
• Load capacity: 300kg - 3000kg.
• Standards: IOS9001, CE, SGS, NFPA, ANSI.
• Surface treatment: galvanized, powder coating, color painting.
• Packing: wrapped by plastic film, then put on wooden pallet.

Features:

• Antirust, oxidation resistant and corrosion resistant after galvanization or powder coating.
• High loading capacity with the reinforcement of U-shaped steel at the bottom.
• A safe and stable structure on rack beams preventing the objects falling off.
• Open wire mesh structure provides high visibility, and avoids the build of dirt or dust.
• Easy to install and maintain.
• Reusable trip after trip.
• The wire decking is nonflammable, and also allows water flow through it from the overhead sprinklers, so as to decrease the fire hazard.
• The high strength steel material makes it durable and have a long life span.

Applications:
TAWINER wire decking has versatile applications in warehouse storage and logistic distribution center, to store various types of products whenever they are loose pieces or bulk cargo.
