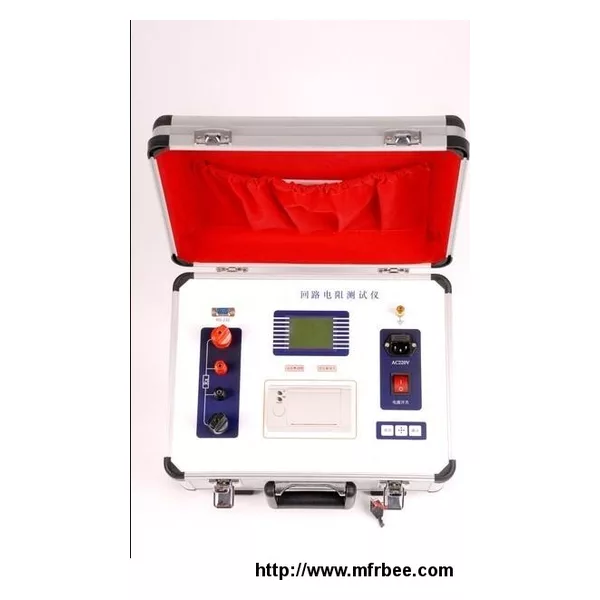

GDHL circuit breaker/switch loop resistance tester is applied in circuit breaker testing and power cable connection quality inspection.
GDHL circuit breaker /switch loop resistance tester max test current could be reached 600A.
GDHL circuit breaker /switch loop resistance tester all test results could be saved in tester or printed by micro printer.
1 | Test current | 100A/200A/400A/600A DC |
2 | Max voltage output | 5V |
3 | Test standard | IEC62271 |
4 | Measurement range | 0~1999.9uohm Resolution: 0.1uohm |
5 | Accuracy | 0.5%RDG+0.2uohm |
6 | Display mode | LCD |
7 | Max memory size | 100 groups of test data |
8 | Power output mode | succession |
9 | Rated power supply | AC220V ± 10%, 50Hz/60Hz |
10 | Environment temperature | 0-50°C |
11 | Humidity | ≤85%RH |
12 | Size | 340mm × 280mm × 210mm |
13 | Weight | 7 kg |
