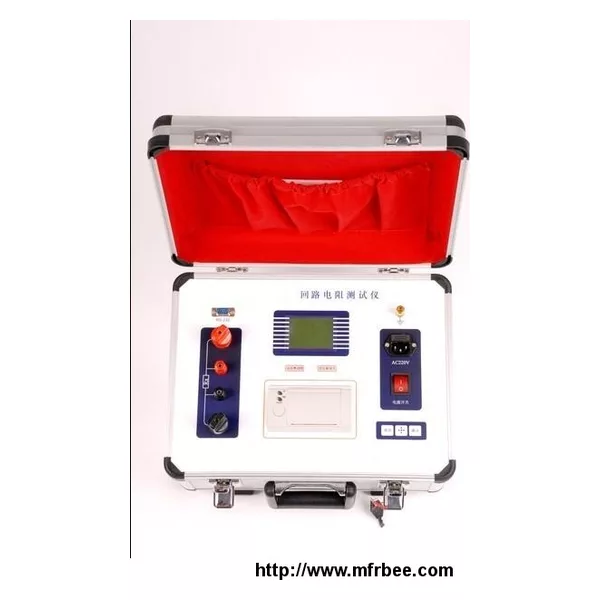

GDHL Circuit Breaker Loop Resistance Tester
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Standard wooden case and carton according to customer's requirement
- Delivery
- 15 Working Days
Specifications
GDHL circuit breaker loop resistance tester is applied in circuit breaker testing and power cable connection quality inspection.
GDHLcircuit breaker loop resistance tester max test current could be reached 600A.
GDHL contact resistance meter all test results could be saved in tester or printed by micro printer.
| 1 | Test current | 100A/200A/400A/600A DC |
| 2 | Max voltage output | 5V |
| 3 | Test standard | IEC62271 |
| 4 | Measurement range | 0~1999.9uohm Resolution: 0.1uohm |
| 5 | Accuracy | 0.5%RDG+0.2uohm |
| 6 | Display mode | LCD |
| 7 | Max memory size | 100 groups of test data |
| 8 | Power output mode | succession |
| 9 | Rated power supply | AC220V ± 10%, 50Hz/60Hz |
| 10 | Environment temperature | 0-50°C |
| 11 | Humidity | ≤85%RH |
| 12 | Size | 340mm × 280mm × 210mm |
| 13 | Weight | 7 kg |
