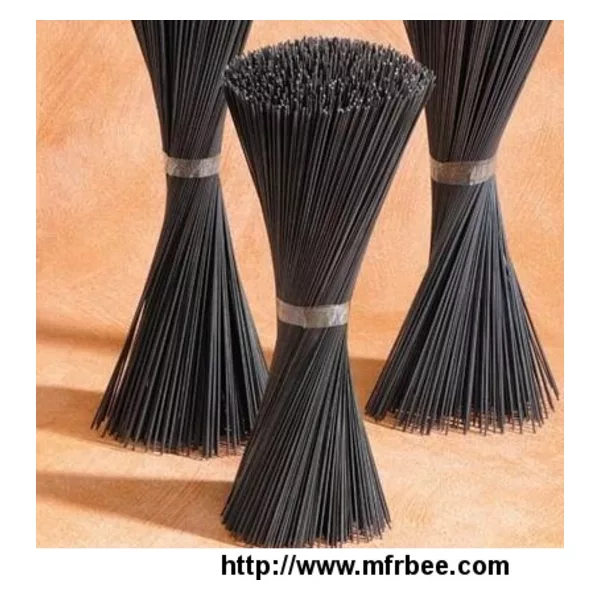

Application: Cut Wire is mainly used in construction, express way fencing, handicrafts, binding of flowers and wire mesh weaving. Packaging of products and other daily uses.
Material: Low carbon steel wire SAE C1006-1008, Stainless steel wire type 304,316
Process: Hot dipped galvanized wire Electro galvanized wire Powder coated wire Black annealed (plain steel) wire painted
Wire diameter: 1.0mm-4.0mm
Length: 20cm, 30cm, 40cm
Tensile strength: 350n/mm2-550n/mm2
Elongation: 8%-15%
Packing: In bundles or cartons. 5kg-30kg/ carton.
Specification reference:
Wire sizes | SWG(mm0 | BWG(mm) | Metric(mm) |
8 | 4.06 | 4.19 | 4 |
9 | 3.66 | 3.76 | 3.7 |
10 | 3.25 | 3.4 | 3.5 |
11 | 2.95 | 3.05 | 3 |
12 | 2.64 | 2.77 | 2.8 |
13 | 2.34 | 2.41 | 2.5 |
14 | 2.03 | 2.11 | 2.1 |
15 | 1.83 | 1.83 | 1.8 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.4 |
18 | 1.22 | 1.25 | 1.2 |
19 | 1.02 | 1.07 | 1 |
20 | 0.91 | 0.89 | 0.9 |
21 | 0.81 | 0.813 | 0.8 |
22 | 0.71 | 0.711 | 0.7 |
