Horizontal fiberglass storage tanks are available for many different types of specifications and services. These tanks are constructed using premium quality materials to insure a long and valuable service life. A majority of these tanks can be built complete on site before shipping to the customer.
Some of the options and combinations available:
Underground Vessels
| ||
* Rib placement, size, and quantity based on vessel design requirements | ||

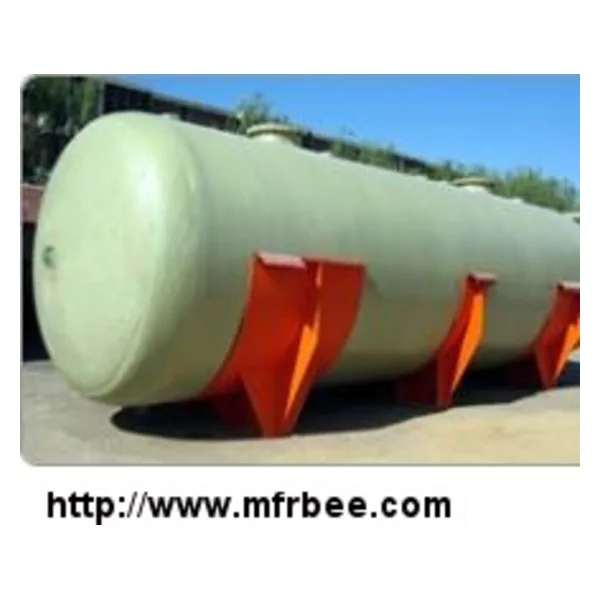

Above Ground Vessels
| ||
* Cradle placement, size, and quantity based on vessel design requirements. |
Some typical sizes and capacities are as follows:
DIAMETER | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
8 Feet | 10 Feet | 12 Feet | ||||||||
SIDEWALL | CAP | WT | CAP | WT | CAP | WT | ||||
5 Feet | 2630 | 1138 | 4038 | 1657 | 5790 | 2040 | ||||
6 Feet | 3006 | 1163 | 4625 | 1688 | 6636 | 2078 | ||||
7 Feet | 3382 | 1188 | 5213 | 1720 | 7482 | 2116 | ||||
8 Feet | 3758 | 1213 | 5800 | 1751 | 8328 | 2154 | ||||
9 Feet | 4134 | 1238 | 6388 | 1783 | 9174 | 2191 | ||||
10 Feet | 4510 | 1263 | 6975 | 1814 | 10020 | 2229 | ||||
11 Feet | 4886 | 1288 | 7563 | 1846 | 10866 | 2267 | ||||
12 Feet | 5262 | 1314 | 8150 | 1877 | 11712 | 2304 | ||||
13 Feet | 5638 | 1339 | 8738 | 1908 | 12558 | 2342 | ||||
14 Feet | 6014 | 1364 | 9325 | 1940 | 13404 | 2380 | ||||
15 Feet | 6390 | 1389 | 9913 | 1971 | 14250 | 2417 | ||||
16 Feet | 6766 | 1414 | 10500 | 2003 | 15096 | 2455 | ||||
17 Feet | 7142 | 1439 | 11088 | 2034 | 15943 | 2493 | ||||
18 Feet | 7518 | 1464 | 11675 | 2065 | 16789 | 2531 | ||||
19 Feet | 7894 | 1490 | 12263 | 2097 | 17635 | 2568 | ||||
20 Feet | 8270 | 1515 | 12850 | 2128 | 18481 | 2606 | ||||
22 Feet | N/A | N/A | N/A | N/A | 20173 | 2681 | ||||
24 Feet | N/A | N/A | N/A | N/A | 21865 | 2757 |
CAP - Capacity in Gallons WT - Weight in Pounds - Weight is approximate for an empty tank
