Microplate sieve - stainless steel wire or nickle plate
Product sourcing details
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Microplate sieve for particle size analysis

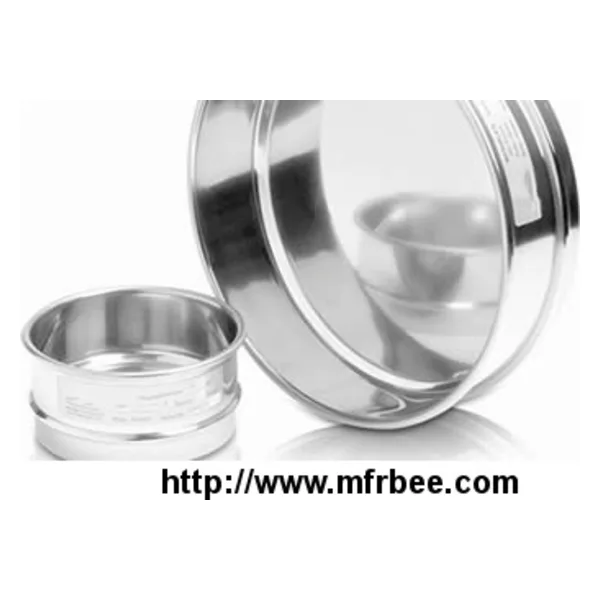

Microplate sieve
Microplate sieve made from electro-formed nickel plate in stainless steel frames of 75mm to 300mm diameter. This sieve features unique self clearing apertures for the sizes from 75 to 5 microns. Supplied with either round or square holes. Other sieve sizes can be supplied as required. It is recommended that this sieve is used in conjunction with a liquid medium to assist the passage of extremely fine particles through the apertures.
Specification:
- Sieve material composition.
- Stainless steel mesh + stainless steel frame/aluminum frame.
- Stainless steel mesh + brass frame.
- Brass mesh + brass frame.
| Material | stainless steel, nickel plated |
|---|---|
| Aperture | 5μm, 15μm, 20μm, 25μm, 30μm, 40μm, 50μm, 60μm, 75μm. |
| Diameter | 75mm, 100mm, 200mm, 300mm |
| Hole shape | round, square |
| Frame thickness | 0.6mm, 0.7mm |
| Height | 30mm, 35mm, 50mm, 60mm |
| Technology | woven wire mesh, perforated plate, electrical forming nickle plate |
| Standard | ISO3310, GB6003, ASTM, BIS |
| Function | particle size analysis |
Feature:
- Frame are soldered all around.
- Exact, glazed and wearable surface.
- More strong and durable.
- Long time use.
Application:
This sieve is used to precise mesh analysis, test, measure and powdery material classification in lab, hospital, pharmacy, foodstuff, metallurgy, etc.
- Company: Hulanta Mesh Sieve Company
- Country: China (Mainland)
- Contact: hui zhagn
