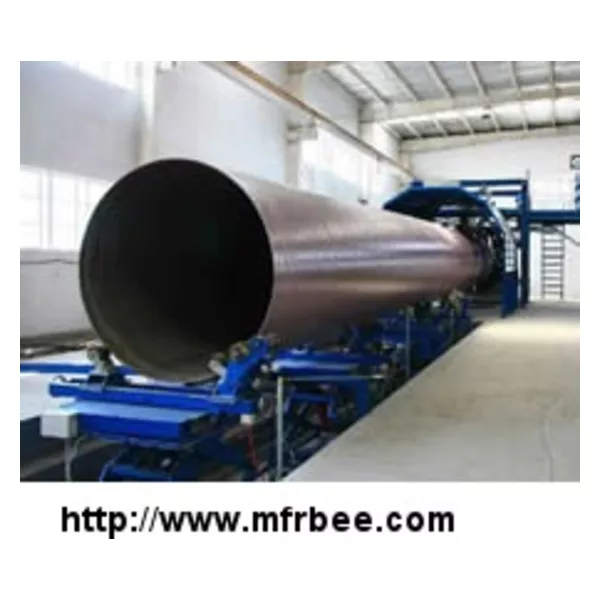

Continuous filament winding machine, abbreviated to CFW machine, is designed to manufacture FRP or GRP pipes with similar work principle to DFW machines. However, CFW machine has different areas where filament winding is laying out - continuous winded steel bands with smooth surface.
CFW machines can be used to produce various types of pipes such as polyester pipe, polyester sand inclusion pipe and epoxy or PVC composite pipe. These pipes manufactured by our CFW have excellent axial strength and widely used for storing drinking water, building water sewage projects, drainage engineering and various anti-pollution projects in chemical industries.
Feature:
Composition:
Process:

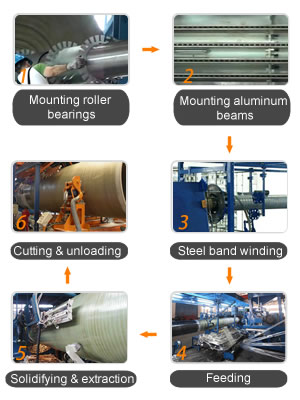

Step 1: Mounting roller bearing
Slip the outward-facing roller bearings on the principal axis.
Step 2: Mounting aluminum beams
Fix aluminum beams to the grooves of roller bearings.
Step 3: Steel band winding process
Wind steel band around the forward moving mandrel with the help of a placement head on the mandrel’s supported end. Normally, the steel band is about 2” in width, and the mandrel moves forward about one band width when it rotates a circle. Then the steel band is winded to form a smooth mandrel for raw material feeding. At the end of the mandrel, the steel band is guided by exit head to turn back to the mandrel’s core. And then the placement head re-direct the band on the mandrel again for recycling usage.
Step 4: Feeding process
After the circle system of steel band is finished, then wind a layer of lining film around the steel band and make processed pipe raw materials winded around steel band and gone forward with the mandrel.
Step 5: Solidifying & extraction
Cure the winded pipe until it is solidified. Then extract the pipe from mandrel system.
Step 6: Cutting & unloading
Cut the pipes into custom length and transport them to the construction site.
Specification:
Model | Pipe diameter |
CFW1200 | 250mm to 1200mm |
CFW2600 | 300mm to 2600mm |
CFW3000 | 300mm to 3000mm |
CFW4000 | 400mm to 4000mm |
