Double Horizontal Wires Fence
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Plastic film then pallet
- Delivery
- 15 Days
Specifications

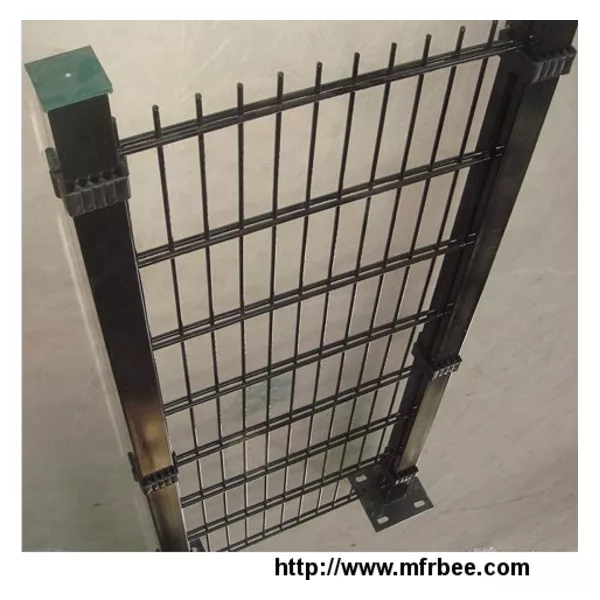

DOUBLE HORIZONTAL WIRES FENCE/double rod fence panel/double rod gratings (grid fencing)
DOUBLE HORIZONTAL WIRES FENCEare also named as double rod fence panel or double rod gratings (grid fencing).double wire fencing is a rigid yet unobtrusive mesh fencing system.It is often used as a perimeter fence for industrial or commercial premises and sport pitches where a strong mesh fencing system is required.
The finished surface usually is galvanized and PVC coating, or alternatively.The thickness of PVC coating is 100-120 microns usually.The wire diameters are usually choosing 6MM*2+5MM*1.8MM*2+6MM*1.It obtains high strong powers to resist the construction.
Post:usually choose square post(50*50mm,60*60mm),rectangular post(80*60*2.5mm,120*60*3mm) with the high strength and so on. With plastic caps or roofing rain-hat, finished surface usually are galvainzed and powder coating, also can be customized.
Double wire fence uses high quality iron rod, low carbon steeland high quality steel as raw material.it can strongly resist corrosion and ultraviolet radiation.
COLORS FOR DOUBLE HORIZONTAL WIRES FENCE:
all kinds of colors are available such as green, blue, red, yellow, white and black.
SPECIFICATION
| Wire Diameter(mm) |
Mesh Size (mm) |
Surface
Treatment |
Panel Width (mm) |
Panel Height (mm) |
Post Height (mm) |
|
Vertical Wire 1xø5mm/1x6mm & Horizontal Wire 2xø6mm OR Vertical Wire 1xø5mm/1x6mm & Horizontal Wire 2xø8mm |
50x100mm 50x200mm 55x200mm 100x200mm |
Electro-Galvanized Hot-Dipped-Galvanized PVC Coated Powder Coated |
2500 | 630 | 1100 |
| 2500 | 830 | 1300 | |||
| 2500 | 1030 | 1500 | |||
| 2500 | 1230 | 1700 | |||
| 2500 | 1430 | 1900 | |||
| 2500 | 1630 | 2100 | |||
| 2500 | 1830 | 2400 | |||
| 2500 | 2030 | 2600 | |||
| 2500 | 2230 | 2800 | |||
| 2500 | 2430 | 3000 |
BENEFITS OF DOUBLE HORIZONTAL WIRES FENCE
Strong and reliable security
Versatile bottom option
Attractive appearance
Vandal resistant
Cost effective
Low maintenanceIdeal
DOUBLE HORIZONTAL WIRES FENCE APPLICATION:Double wire fences are used for fencing most industrial sites, sporting fields, multi games areas ,protection of schools and nurseries,Corporate/college campuses, housing projects, healthcare/research facilities ;Airports, parking facilities, commercial and industrial properties; Pools, amusement parks, tennis courts, public parks and playgrounds ;Overpasses and parking structure ,residential areas.Double wire fences are used more and more by domes
