Sterilization wire baskets are designed for washing & sterilizing processes in various instrument washers and disinfectors. They are also adapted to conveyors, loading / unloading equipment, storage racks and distribution trolleys. Made of top quality stainless steel, our sterilization wire baskets feature cross hatch structure with spot welds which make them strong enough to withstand repeated washing and the roughest handling.
Features:
Different standards of sterilization wire baskets can be supplied including SPRI, ISO and DIN as shown below:
DIN sterilization wire basket features its continuous wire loops which make it stylish with smooth surface. SPRI / ISO wire basket is characterized by its strong top frame easy hand gripping even if the basket is heavy loaded. Meanwhile, they are nestable and stackable to keep your working areas neat.
Specification:

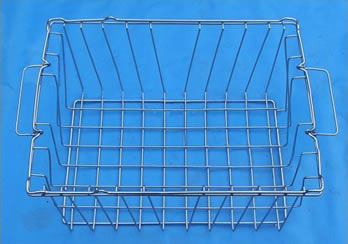

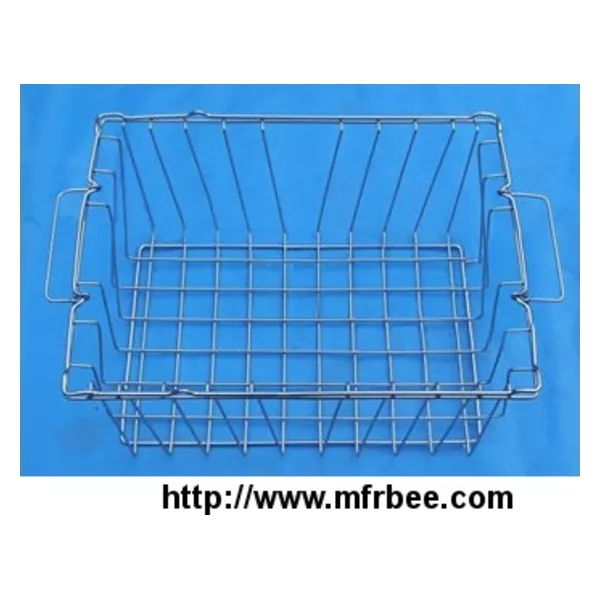

SPRI sterilization wire basket | |||
Code | Length (mm) | Width (mm) | Height (mm) |
SSWB-1 | 525 | 440 | 190 |
SSWB-2 | 535 | 380 | 190 |
SSWB-3 | 585 | 395 | 100 |
SSWB-4 | 585 | 395 | 195 |
SSWB-5 | 600 | 292 | 138 |
SSWB-6 | 600 | 292 | 150 |
SSWB-7 | 600 | 292 | 260 |
SSWB-8 | 600 | 300 | 138 |
SSWB-9 | 600 | 300 | 260 |
SSWB-10 | 600 | 400 | 100 |
SSWB-11 | 600 | 400 | 130 |
SSWB-12 | 600 | 400 | 150 |
SSWB-13 | 600 | 400 | 180 |
SSWB-14 | 600 | 400 | 200 |
ISO sterilization wire basket | |||
Code | Length (mm) | Width (mm) | Height (mm) |
ISWB-1 | 295 | 295 | 190 |
ISWB-2 | 585 | 295 | 100 |
ISWB-3 | 585 | 295 | 190 |
ISWB-4 | 600 | 400 | 100 |
ISWB-5 | 600 | 400 | 150 |
ISWB-6 | 600 | 400 | 200 |
DIN sterilization wire basket | |||
Code | Length (mm) | Width (mm) | Height (mm) |
DSWB-1 | 575 | 280 | 130 |
DSWB-2 | 575 | 280 | 135 |
DSWB-3 | 575 | 280 | 260 |
DSWB-4 | 575 | 280 | 265 |
DSWB-5 | 575 | 560 | 258 |
DSWB-6 | 575 | 560 | 265 |
DSWB-7 | 600 | 300 | 44 |
DSWB-8 | 600 | 300 | 150 |
DSWB-9 | 600 | 300 | 300 |
DSWB-10 | 600 | 400 | 300 |
DSWB-11 | 832 | 260 | 135 |
DSWB-12 concave style | 575 | 280 | 265 |
DSWB-13 concave style | 600 | 300 | 300 |
DSWB-14 concave style | 600 | 400 | 300 |
