Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood Pellet is one of the most commonly used pelletizing materials. Complete wood pellet making plant for hot sale is a complete set of biomass pelletizing equipment newly and independently developed by Henan Fote Heavy Machinery Co., Ltd.. It is mainly composed of a hammer mill, a cyclone separator, a material mixing & storage bin, a screw elevator/feeder, a flat die pellet mill, a cooling system (water tank), a vibrating sieve/screen, a bucket conveyor, a foundation frame, fans, and electrical control cabinet. It is an ideal machine to produce biomass pellets from sawdust or stalks, and animal feed pellets are nothing difficult for it.
The Main Working System of Complete Wood Pellet Making Plant for Hot Sale:
Raw Material Pulverizing System ------ Dry System ------Pelletizing System---- Cooling Sieving /Bagging system
1. Pulverizing System
When the thickness of raw wood material is 10mm, and 50 * 50mm(L * W), we need use the Wood Chipper to chip them into small pieces, then crush the small pieces into wood powder with diameter less 3mm by hammer mill.
2. Drying System
The best moisture content to pelletizing is about 13-15%. Our rotary dryer is made up of stove and main rotary dryer, which can realize to reduce the moisture from 60% to 10%. Our stove is fueled by coal, which can save electricity consumption largely.
3. Pelletizing System

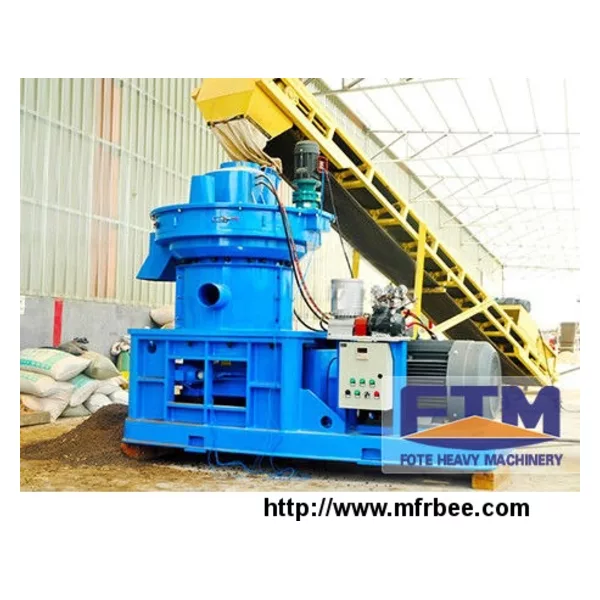

Driven with heavy- duty gearbox construction can produce continuously in most adverse condition. The imported key elements are of high performance with long life and low maintenance cost. The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel. Pellet machine is widely used in the granulation of wood, straw, and other biomass sources. Capacity ranges from 200kgs to 3T per hour.
4. Cooling /sieving /Bagging system
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need to use Cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic best semi-auto packing machine to you. Welcome to contact or visit our company.
Contact Infomation
Email: info@sinoftm.com
Website: http://www.woodpelletmillchina.com/pro/wood_pellet_production_line.html
Address: High and New Industrial Zone, Kexue Revenue, High and New Technology Industrial Development Zone, Zhengzhou, China
Model YGKJ380 YGKJ450 YGKJ560A YGKJ560B YGKJ560C YGKJ700 YGKJ880 Capacity(T/H) 0.2-0.3 0.6-0.8 1-1.3 1.2-1.5 1.2-1.5 2-2.5 3-4 Power(KW) 22+0.75 55+1.5+ 1.1+0.37+ 0.55 90+1.5+ 1.5+0.55+ 0.37 90+1.5+ 1.5+0.55+ 0.37 90+1.5+ 1.5+0.55+ 0.37 160+2.2+ 0.37+0.75 +1.5 220+3+0.5 ...
