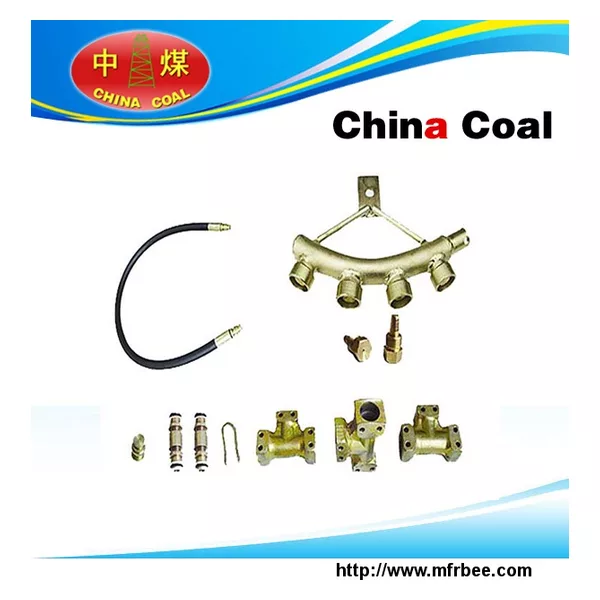

Control valve
Product Quick Detail
- Packaging
- according to your requirements
- Delivery
- 7 Days
Specifications
Control valve introduction
Control valve is for dust control components of the hydraulic support package, which is used to improve the working environment of space of fully mechanized working face. Water spray dust suppression is to reduce dust.chinacoal05
In the hydraulic circuit it is installed on the hydraulic control valve with automatic spray, it is suitable for fully mechanized face local dust work.
The hydraulic control valve is with automatic spray for POM seat - ballsealing structure.
The working principle and the hydraulic control one-way valve, a top rod control one-way valve.
Control valve parameter
FYP13 type: automatic spray control valve which material is carbon steelvalve.
Model :FYP13 applicable range :equipment support
Automatic spray control valve nominal pressure: 31.5 (MPa)products aliashydraulic support .
Type (channel) :three way connection joint
Parts and accessories for driving hydraulic control
Main materials of FYP13 type automatic spray control valve: carbon steel
FYP13 type automatic spray control valve inlet closed pressure :5MPa
Control the opening pressure :31.5MPa
Mandrel stroke :5mm
Liquid inlet diameter : 13
Control interface: KJ10
Dimensions: 144 x 141 x 45 weight:3.2kg
Hydraulic control valve which is with automatic spray of hydraulic support isdust control element, POM seat and steel balls. It is single head rod control a one-way valve.
- Country: China (Mainland)
- Business Type: trading company
- Market:
- Founded Year:1994
- Address:No.69 Huoju Road, New & High Zone,Jining City,Shandong Province,China
- Contact:Elena Sun
