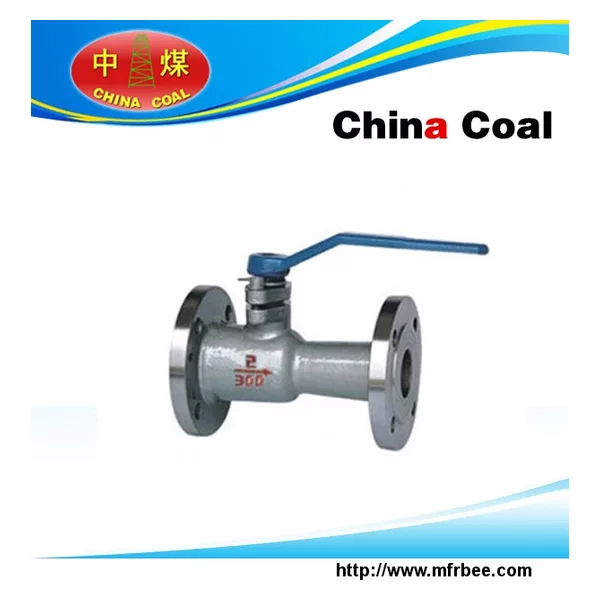

Mechanical valve product introduction
Mechanical valve main classification of sanitary stainless steel welding(quick) elbow, three, different diameter pipe, four links, the clamp ring.All steel parts are made of stainless steel materials, seals food silicon rubber or PTFE, meet the health standards of food.chinacoal05
Mechanical valve outline dimensions and connections dimensions
Path DN Dimension
G L L1 L2 S D H D0
15 1/2" 90 45 14 32 48 82 125
20 3/4" 100 50 16 36 55 85 125
25 1" 115 58 18 46 62 90 125
32 1¼" 130 66 20 55 80 120 250
40 1½" 150 77 22 61 90 145 250
50 2" 180 91 24 75 112 150 300
panP�>p�� � oNormal >Design standards: GB/T12237-1989; DIN3357/1,2:API608Flange size: GB/T9113.1, JB/T79; DIN3202; JIS B2002; ASME B16.10
The structural length: GB/T12221-1989; DIN3202; JIS B2002:ASMEB16.10
Test: GB/T13927; DIN3230/3; API598; JIS B2003
Flow ball valve parameter
Nominal pressure: PN1.6, 2.5, 4.0Mpa
Connection: flange (two pieces, three piece)
Body material: steel, stainless steel (WCB) CF8 (304), CF8M (316)
The ball valve material: stainless steel CF8 (304), CF8M (316)
Sealing material: PTFE, PPL, seal
Stem material: 304 stainless steel, 316
Applicable temperature range: -20 ~ 232 ℃ ~ 350 ℃, metal seal: 450 ℃ ~600 ℃
Suitable medium: water, oil, gas, powder, all kinds of organic solvent and some corrosive liquid (W · O · G)
Flow ball valve product introduction
Electric actuator adopts imported original parts, accurate wear-resisting, return difference, security assurance
Double spacing, overheating, overload protection (option)
Oil free, free maintenance, waterproof anti rust, and can reduce electromagnetic interference
No support is connected between the ball valve and actuator, shape structure integrated compact space, reduce equipment
Between the ball valve and ball with anti-static device
The ball valve explosion-proof design, fire protection design
Double shrapnel automatic compression packing
The design use: the valve is suitable for food, beverage,pharmaceutical, chemical and other pure lines and industrial environmental protection, water treatment, high-rise buildings, water supply and drainage pipes for opening and closing or regulate the flow of.
