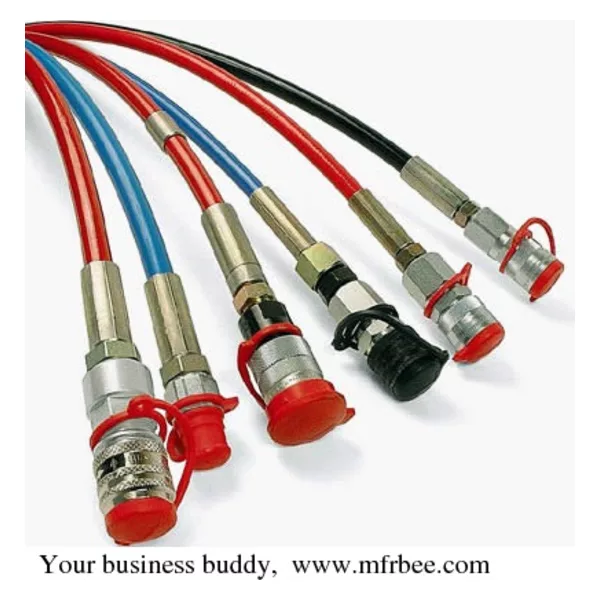

We are well known supplier for a wide range ofhydraulic hoses that are widely used in large scope of industries. The hydraulic hoses are available in different sizes and pressure ranges according to customers’ unique requirements. They are durable, anti corrosive and at leading prices of the markets. Apart from high and medium pressure hydraulic hose we also offer detailed information of low pressure hydraulic hose.

Construction:
Tube: synthetic rubber, oil resistant.
Reinforcement: one textile braid which is laid over tube at a special angle which causes hose to tighten around coupling as pressure is applied.
Cover: impregnated textile braid, oil and mildew resistant
Advantages: Robust Construction, Corrosion Resistance, Durable Finish Standards, Extended Efficiency, Perfect Finish.

Applications:
Used for low pressure transmission of oil, gasoline, air, water, coolants, etc. where operating pressures does not exceed 250psi.
Recommended Temperature Range: -40° F to 212° F

Nominal specifications:

DN	I.D. (in)	O.D. (in)	Working pressure (psi)	Burst pressure (psi)	Bend radius (in)	Crimp fitting series	Wt. (lbs.)
4	1/4	0.50	350	1400	2.5	82	0.1
6	3/8	0.63	300	1200	3.0	82	0.1
8	1/2	0.78	300	1200	5.0	82	0.1
10	5/8	0.91	250	1000	6.0	82	0.1
12	3/4	1.03	250	1000	7.0	82	0.1
