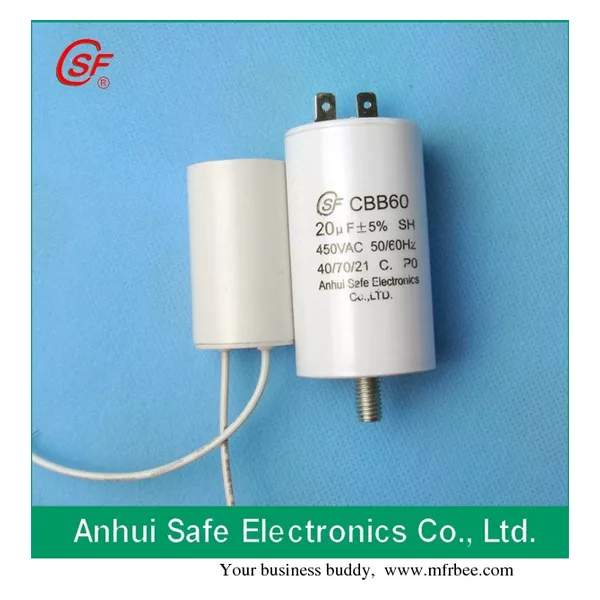

CBB60 capacitor by polypropylene film
Product Quick Detail
- China (Mainland)
- anhui tongling
- Packaging
- capacitor standard export cartons with pallets and also as customer requests
- Delivery
- 10 Days
Specifications
metalized film capacitor for water pump
1.widely for washing machine,mirco water pump, cleaning machine and high efficiency compressors of refrigerators
etc. 2.From
capacitor factory
3.SH capacitor run leader
metalized film capacitor for cleaning machine
It is widely applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency, especially for washing machine,mirco water pump, cleaning machine and high efficiency compressors of refrigerators etc.
CBB60 capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and
dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Specification:
Climate type: 40/70/21 or 40/85/21
Capacitance tolerance: ± 5%
I.R : ≥3000S(MΩ·µF)
Dielectric dissipation factor : tgδ≤0.002 (50Hz~100Hz)
Altitude : ≤2000m
Standard : IEC 60252-1:2001
1.Other capacitance and dimension serials can be specified in compliance with customer's request.
2.Terminal forms can be made in conformity to the requirements of agreements with customers.
Why choose us ?
1.As a national high-tech enterprise,we have 22 years exprience in capacitor
industry,25 industry patents and a number of invention patents.
2.To ensure the product quality and consistency,we have obtained the ISO 9001 quality system certificate and CQC product certificate.
3.We have modern factories and purification plant,the world first-class production equipment and the technical team consisted of a number of experts.
More products details :www.anhuisafe.com
TO BE TOP MANUFACTURER IS QUR TARGET !
- Country:
- Business Type:
- Market:
- Founded Year:
- Address:No.1771 Qifeng Road, Shizishan Economy Develpment Area,Tongling City,Anhui Provicne China
- Contact:Lang Alan Lang
