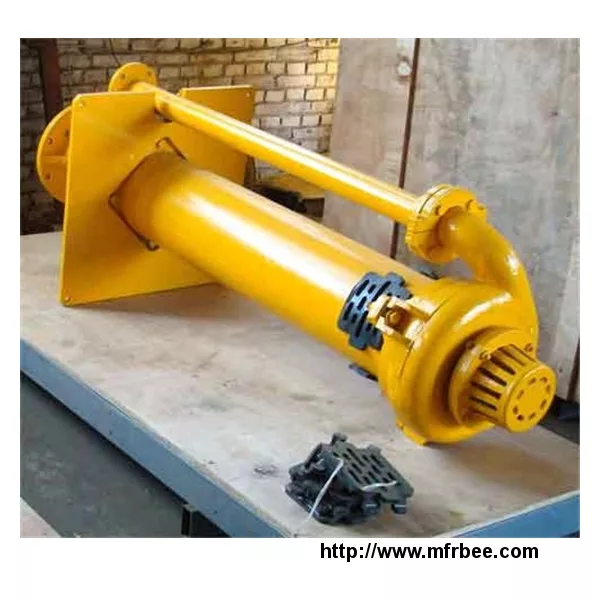

The SP SPR heavy duty cantilever sump pump is designed for applications requiring higher reliability and durability than conventional vertical process pumps.
Discharge Diameters 1.5″ to 10″ (40mm to 250mm)
Heads Range to 160ft (50m)
Flow Rate to 6,000gpm (1,350m3/h)
Max particle size: 65mm
-sand and gravel
-SP pump is hard metal construction, SPR pump is rubber covered construction
-No submerged bearings or packing
-Double suction and semi-open impeller
-Optional recessed impeller and suction agitator available.
-The vertical cantilever design requires no shaft seal
-The screened inlets and large impeller passages reduce the risk of blockage
SPECIFICATIONS: Size: 12\" x 10\" Capacity: 936-1980m3/h Head: 7-68m Speed: 300-800rpm NPSHr: 2.5-7.5m Eff.: 82% Power: Max. 560kw Handling solids: 86mm Seal arrangement: Packing seal, Expeller seal, Mechanical seal Materials: A05, A07, A33, A49, A51, A61, R08, R2 12x10ST-AH ...
SPECIFICATIONS: Size: 14\" x 12\" Capacity: 1152-2772m3/h Head: 13-63m Speed: 300-600rpm NPSHr: 3-10m Eff.: 77% Power: Max. 560kw Handling solids: 90mm Seal arrangement: Packing seal, Expeller seal, Mechanical seal 14x12ST-AH Slurry Pumpis made for high wearing and heavy duty ...
SPECIFICATIONS: Size: 16\" x 14\" Capacity: 1368-3060m3/h Head: 11-63m Speed: 250-550rpm NPSHr: 4-10m Eff.: 79% Power: Max.1200kw Handling solids: 135mm Materials: High chrome alloy, Rubber, Polyurethane etc 16x14TU-AH Slurry Pumpsprovide a ideal replacement for many OEM slurry ...
SPECIFICATIONS: Size: 18\" x 16\" Capacity: 2160-5040m3/h Head: 8-66m Speed: 200-500rpm NPSHr: 4.5-9m Eff.: 80% Power: Max. 1200kw Handling solids: 135mm Materials: High chrome alloy, Rubber etc 18x16TU-AH Slurry Pumpis perfect for difficult mill duties with long wear life, It ...
SPECIFICATIONS: Size: 20\" x 18\" Capacity: 2520-5400m3/h Head: 13-57m Speed: 200-400rpm NPSHr: 5-10m Eff.: 85% Power: Max.1200kw Handling solids: 140mm Seal arrangement: Packing seal, Expeller seal, Mechanical seal 20x18TU-AH Slurry Pumpis the world’s most comprehensive ...
Tobee®AH Series Slurry Pumpsare the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High ...
