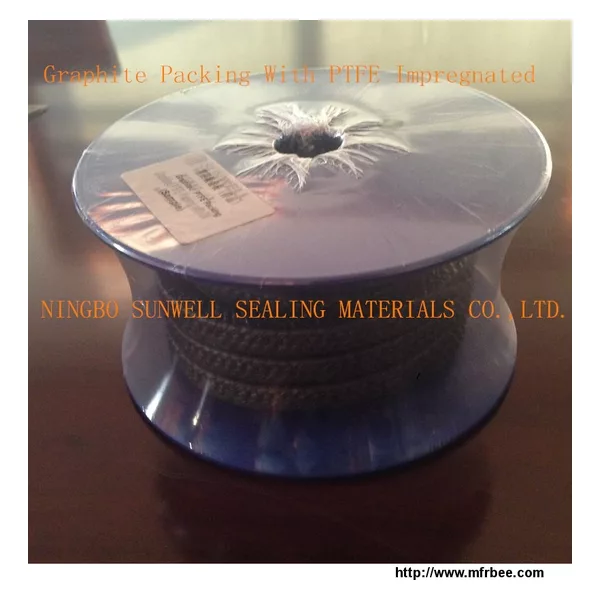

Graphite PTFE Filament Packing:PTFE Graphite Filament Yarn is made by special technique,impregnated with PTFE dispersion and graphite powder to increase density and sealing efficiency. Braided by high strength PTFE filament LENMENS yarn with graphite impregnation. The characteristics are similar to "CGFO".
Prime Features:
Temperature)-200~+280
Pressure
30bar(revolving) 100bar(reciprocating) 200bar(flange)
PH Range0-14
Density 1.65g/cm3
Linear Speed)0-25M/S
Size3*3mm-60*60mmor as request
Typical Application
1. Wide range of media across many industrial sectors.
2. Its versatility with valves, rotary equipment and reciprocating pumps allows users to standardise on one range of packing for the majority of their general plant.
