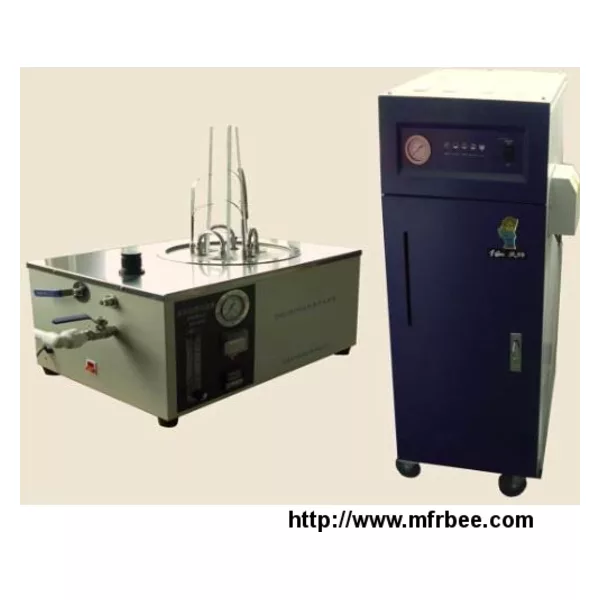

GD-8019B Existent Gum Tester
Product Quick Detail
- Place Of Origin
- Chongqing of China
- Packaging
- Wooden Case
- Delivery
- 7 Days
Specifications
This instrument is designed and made as per standards GB/T 8019-2008 Standard test method for gum content in fuels by jet evaporation and ASTM D381. It can be used to determine the existent gum content of aviation fuels by steam vaporizing medium.
Equipping with an air compressor, this instrument can also be used to determine the existent gum content of aviation gasolines and motor gasolines by air vaporizing medium.
I. Main technical features
1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of
evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample wells. A pressure gauge shows the
flow rate when steam vaporizing medium is used. A ball float type flowmeter shows the flow rate
when air vaporizing medium is used. It can determine 3 samples at a time.
3. The instrument is desktop structure. Simple design and easy to operate.
II. Main technical specifications
GD-8019B Gum content tester
1. Power supply：AC(220±10%)V,50Hz，2.5kW
2. Test wells： 3 wells
3. Operating temperature：
1) Test bath temperature is (232～246)℃ and test well temperature being (229～235)℃ for steam bath.
2) Test bath temperature is (160～165)℃ and test well temperature being (150～160)℃ for air bath.
4. Temperature control：Automatic
5. Temperature display：Digital
6. Flow display：Pressure gauge shows flow rate when steam vaporizing medium is used. Ball float
type flowmeter shows flow rate when air vaporizing medium is used.
7. Working pressure of air reducing valve：0.035MPa（for air vaporizing medium）.
8. Gas source： Electrical heating steam generator for steam vaporizing medium. Air compressure for
air vaporizing medium, over (1000±150)ml/s.
9. Overall dimension：640mm×480mm×340mm(Thermometer holder is not included).
Electrical heating steam generator
1. Model：LDRO.013-0.7
2. Rated evaporation capacity：13kg/h
3. Rated working pressure：0.7Mpa。
4. Power supply：3 phase, AC380V, 50Hz，9000W。
(An air compressure is optional for determining the existent gum content of motor gasolines.)
