Yamaha Cl Feeder Calibration Jig

Place Of Origin: Japan

Packaging: good package

Delivery: 1-5 Days

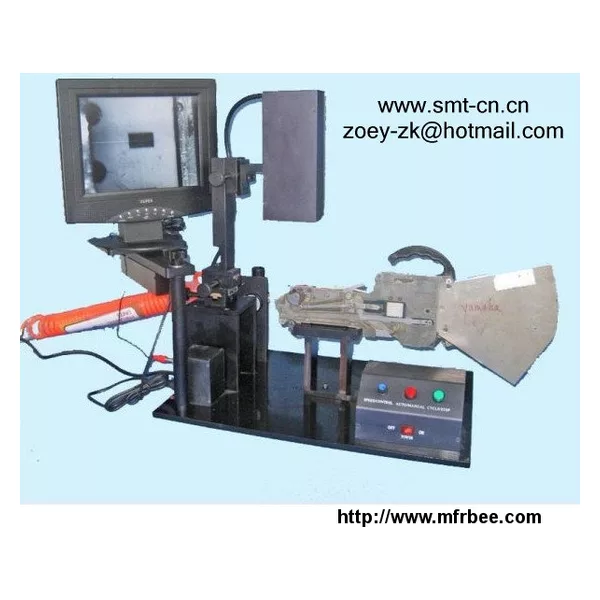

YAMAHA CL Feeder calibration jig

1, Simple structure, easy operation, function optimization. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency

2, Accurate detection. Reclaimer position, height, strut height can be done accurately measured. To better grasp the quality status;

3, The use of 10 'color LED display, LED lighting ring, 50 times magnification CCD camera, making more compact structure, beautiful. Effectively reducing eye fatigue, improve the quality of work;

4, Easy to operate, and can simulate the placement machine, automatic continuous observation reclaimer position, a clearer grasp FEEDER continuous operation quality, and thus more effective control of polishing material ratio;

5, You can choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG;

6, The functions and features:

1. Precise XY axis adjustment;

2. axis camera can be directly adjusted;

3. 24V/220V DC power supply;

4. black and white cross reference cursor;

5. Automatically step function;

6. bright LED display;

7. precise control fixtures feeders;

8. precise 8mm,12mm,16mm and 24 mm feeders control band.

Uses for : FEEDER calibration jig for calibration of various models

Power supply: 220V

Compressed air requirements: 5kg/cm2

Dimensions: L500mm * W 350mm * H550mm

Weight: about 35kg

welcome to contact me:zoey-zk@hotmail.com

Country: China (Mainland)
Business Type: Trading Company
Market:Africa,Americas,Asia,Europe,Emerging Markets,G20,European Union,Middle East,Oceania
Founded Year:2005
Address:fuyong town,shenzhen city,518103,guangdong
Contact:Zoey LIu
