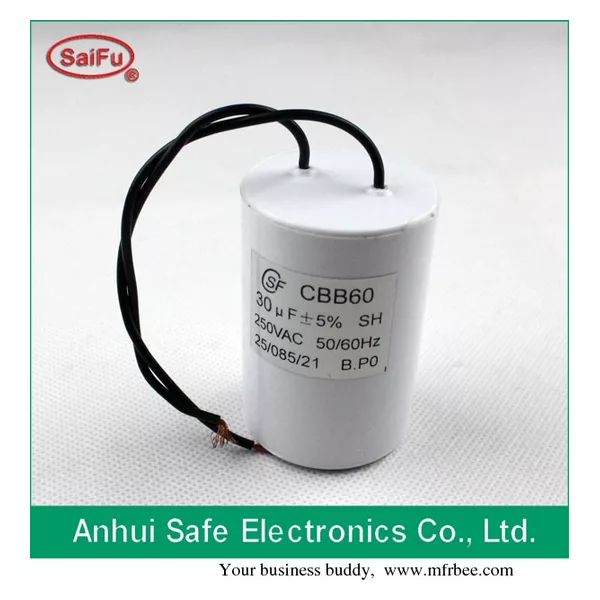

CBB60 description:
CBB60 capacitor takes heavy edge metallized Al/Zn as electrode s and dielectrics.The capacitor components are sealed with flame-retardant expoxy resin .CBB60 has cylindrical outline with high moisture resistance and stability.
CBB60 application:
CBB60 capacitor is broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washing machine ,water pump and high efficiency compressors of refrigerators etc.
CBB60 capaccitor technical data:
Items Characteristics
Product type Metallized polypropylene
Filling Resin
Can Plastic
Capacitance tolerance ±5%
Capacitance range 4~30uF
Climate type 40/70/21 or 40/85/21
Rated voltage 200VAC,250VAC,370VAC,400VAC,440VAC,
450VAC,500VAC,600VAC,630VAC,660VAC
Security level P0/P2
Anticipated operating life ClassB ClassC
Testing voltage T-T: 2.0Un/60S
Insulation resistance >=3000s
Tangent of loss angle of a capacitor tanσ ≤ 0.0020 (100Hz)
