Ball Valve:Stainless Steel Floating Flanged Ball Valve
Product Quick Detail
- Place Of Origin
- china
- Packaging
- custom
- Delivery
- 15 Days
Specifications
Quick Details
- Standard or Nonstandard: Standard
- Structure: Ball
- Pressure: Medium Pressure
- Power: Manual
- Material: Casting
- Temperature of Media: Medium Temperature
- Media: Oil, gas, water etc
- Port Size: 0.5″-8″
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: Q41F
- Brand Name: Sinwa
Packaging & Delivery
| Packaging Details: | Ply-wood Case, Customize |
|---|---|
| Delivery Detail: | 29 Days for Stainless Steel Floating Flanged Ball Valve |
Specifications
Stainless Steel Floating Ball Valve
Size : 0.5~8″
Rating : 150~2500LB
Body Materia: SS, CS

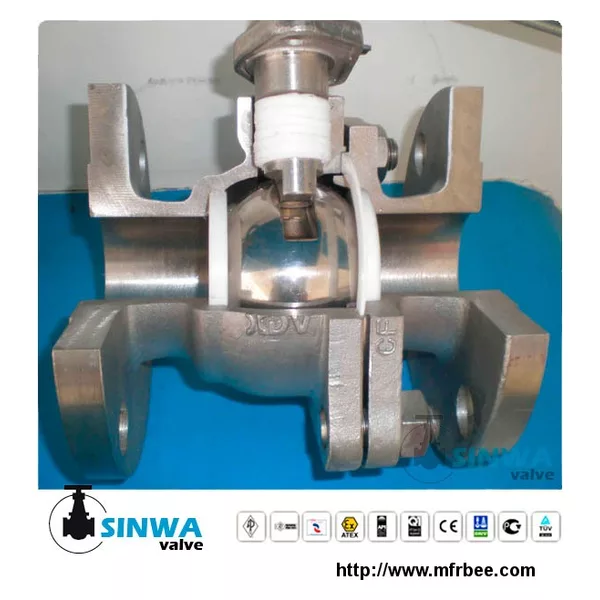

Stainless Steel Floating Flanged Ball Valve
Stainless Steel Floating Flanged Ball Valve Design
These cast steel ball valves are designed and manufactured to provide maximum service life and dependability. All ball valve are full bore and meet the design requirements of American Petroleum Institute standard API 608&API 6D, British standard BS 5351 and generally conform to American Society of Mechanical Engineers standard ASME B16.34 valves are available in a complete range of body/bonnet materials and trims.
Stainless Steel Floating Flanged Ball Valve Applicable Standards:
STEEL BALL VALVES API 608/API 6D
STEEL BALL VALVES ISO 14313
FIRE SAFE API 607
ANTI STATIC API 608
STEEL VALVES ASME B 16.34
FACE TO FACE ASME B 16.10
END FLANGED ASME B 16.5
BUTTWELDING ENDS ASME B16.25
INSPECTION AND TEST,API 598/API 6D
Stainless Steel Floating Flanged Ball Valve Materials of Parts
| No | Part Name | Carton Steel | ASTM Material 18Cr-9Ni-2Mo | Carbon Steel |
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F3041) | A182-F316 | A182-F3041) |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat Ring | RPTFE | ||
| 6 | Bonnet Gasket | Graphite+3042) | PTFE | Graphite+3042) |
| 7 | Bonnet Stud | A193-B7 | A193-B8 | A320-L7 |
| 8 | Bonnet Stud Nut | A194-2H | A194-8 | A194-4 |
| 9 | Packing | PTFE | ||
| 10 | Gland Flange | A216-WCB | A351-CF8M | A352-LCB |
| 11 | Gland Bolt | A193-B7 | A193-B8 | A193-B7 |
| 12 | Stop Plate | Carbon Steel | Carbon Steel+Zn | Carbon Steel |
| 13 | Handle | Carbon Steel |
Note:1)A105+ENP optional
2)Spiral wound construction
Stainless Steel Floating Flanged Ball Valve Design description
FULL PORT DESIGN
BB-BOLTED BONNET, SPLIT BODY
FLOATING BALL TYPE
BLOW-OUT PROOF STEM
FIRE SAFE CONSTRUCTION
ANTI STATIC DEVICE
LOCK DEVICE
ISO 5211 MOUNTING PAD
http://www.sinwavalve.com
FLANGED OR BUTT-WELDING ENDS
AVAILABLE WITH WORM GEAR OPERATOR
