Galvanized Hexagonal Gabion Boxes for Strong Retaining Walls

Galvanized Hexagonal Gabion Boxes for Retaining Wall Construction and Soil Stabilization
We offer Hexagonal Wire Mesh, Gabion Baskets, and Terramesh systems. All wire is high quality and complies with EN 10223-3 and EN 10244-2 Class A standards.

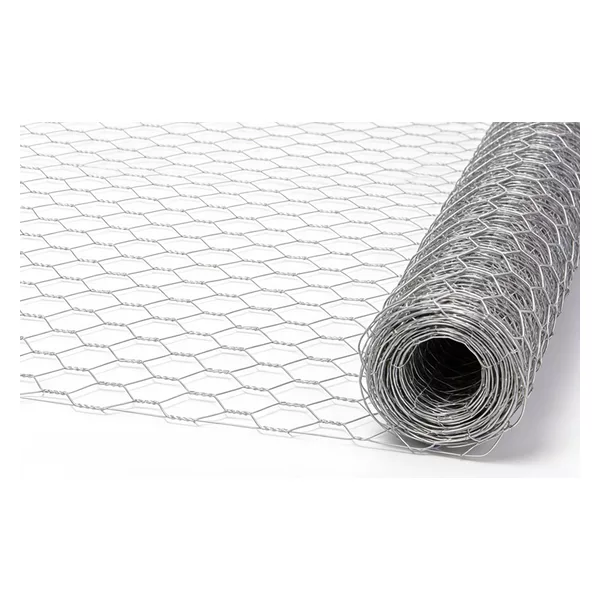

Hexagonal Wire Mesh

Hot-dip heavy galvanized
Mesh Wire: 2.70 mm galvanized (min 245 g/m²)
Selvedge Wire: 3.40 mm galvanized (min 265 g/m²)
Tensile Strength: 350–500 N/mm²
Mesh Opening: 80 × 100 mm (±5 mm tolerance)
Roll Size: 50 m × 4 m
One full 40 HC container
1- Weight of Each Roll: 90–105 kg per roll
2- Loading Information for 40 HC Container: 220–260 rolls per 40 HC container
3-Total weight: 20–25 tons
Gabion Basket

Hot-dip heavy galvanized
Mesh Wire: 2.70 mm galvanized (min 245 g/m²)
Selvedge Wire: 3.40 mm galvanized (min 265 g/m²)
Tensile Strength: 350–500 N/mm²
Mesh Opening: 80 × 100 mm (±5 mm tolerance)
Dimensions: 2 × 1 × 1 m (with one diaphragm)
One full 40 HC container
1- Weight of Each Unit: 18–25 kg per unit
2- Loading Information for 40 HC Container: 900–1,200 units per 40 HC container
3-Total weight: 18–24 tons
