100W UHF Band 400 ~ 3000MHz RF Drop in Circulators
Product sourcing details
The 5o.com 5o1120200 RF Drop-In Circulator provides 100W forward/reverse power over 400–3000MHz UHF band with up to 30% bandwidth. It offers 0.25dB max insertion loss, 25dB min isolation, 1.15 VSWR, 50 Ohm impedance, and TAB connectors. Compact 20x20x10.6mm, it operates from -40°C to +85°C. Backed by 1-year warranty; custom designs available.
- Minimum Order
- 1
- Place Of Origin
- China
- FOB Price
- USD $10.00 / Piece
- Packaging
- 1
- Delivery
- 15 Days
Specifications

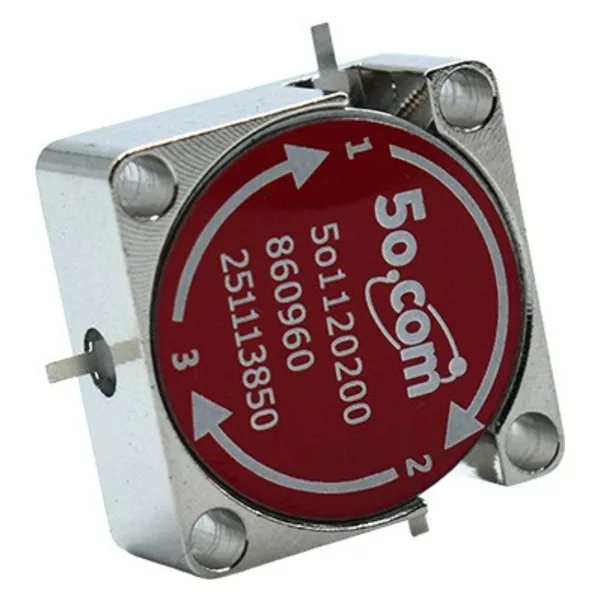

5o.com 100W UHF Band 400 ~ 3000MHz RF Drop in Circulators
Type: RF Drop in Circulator
Brand: 5o.com
Part Number: 5o1120200
Frequency Range(MHz): 400 ~ 3000
Bandwidth Max.: 30%
Insertion loss(Max.dB): 0.25dB
Isolation(Min.dB): 25dB
VSWR: 1.15
Forward Power: 100W
Reverse Power: 100W
Connector Type: TAB
Operating Temperature: -40~+85degree
Storage Temperature: -55~+125degree
Dimension: 20*20*10.6mm
Impedance: 50Ohm
Warranty: 1 year
Customize design: Available
- Company: 5o Inc.
- Country: China (Mainland)
- Business Type: 5o Inc. is a modern high-tech enterprise specializing in the research, development, production, and sales of RF microwave passive components. Focusing on independent innovation, the company primarily manufactures microwave passive components such as RF iso
- Address: Shenzhen Software Industry Base, China.
- Contact: cici song
