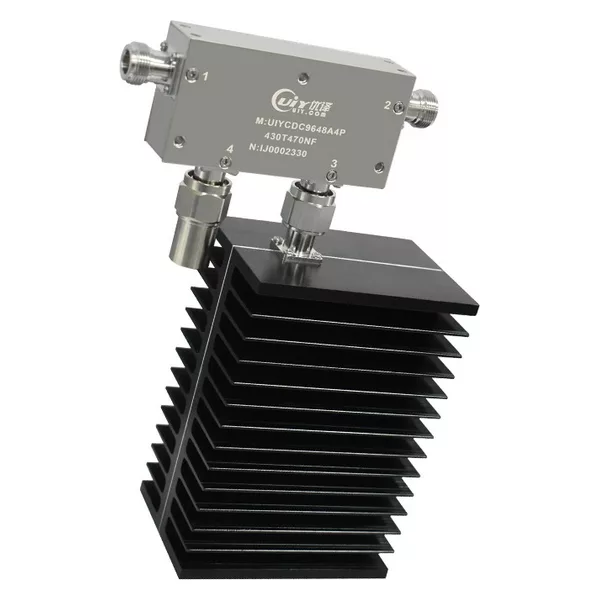

250 to 1300MHz 4 Port Dual Junction Coaxial Circulator
Product sourcing details
Enhance your RF system with the 250 to 1300MHz 4 Port Dual Junction Coaxial Circulator. This model covers 430-470MHz, delivering ultra-low 0.6dB insertion loss, 50dB isolation, and 1.2 max VSWR. Rated for 150W forward and reverse power with N-F connectors, it operates reliably from -40 to +70°C. Designed for military, space, and commercial use, with custom options available.
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $300.00 / Piece
- Minimum Order
- 1
- Packaging
- 4pcs each box
- Delivery
- 15 Days
Specifications
250 to 1300MHz – 4 Port Dual Junction Coaxial Circulator
Design Features
- High RF performance, ultra-competitive price.
- Military, space and commercial applications.
- Custom design available upon request.
- Support one year standard warranty.
RF Characteristics
Model Number: UIYCDC9648A4P430T470NF+L
Freq. Range (MHz): 430 ~ 470
Insertion Loss Max(dB): 0.6
Isolation Min(dB): 50
VSWR Max: 1.2
Forward Power(W): 150
Reverse Power(W): 150
Connector Type: N-F
Temp.(°C): -40 to +70
Other Related Products
- RF Isolators
- RF Circulators
- Attenuator/Termination
- RF Filters
- Power Divider/Splitter
- Duplexer/Triplexer
- TX RX Combiner/Splitter
- Hybrid Combiner
- Directional Coupler
- Waveguide to Coaxial Adapter
If you have any customized inquiries, please contact us promptly.
