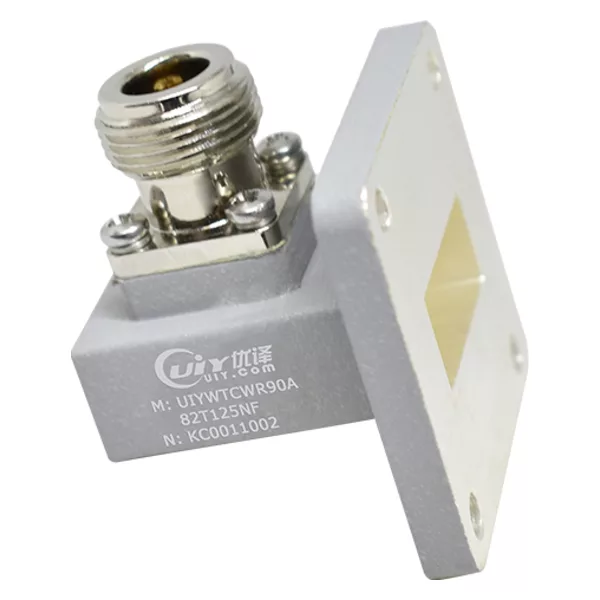

X Band 8.2 to 12.5GHz Waveguide to Coaxial Adapter WR90 Adapter
Product sourcing details
Our X Band 8.2–12.5GHz Waveguide to Coaxial Adapter WR90 Adapter delivers high RF performance at an ultra-competitive price. Featuring low insertion loss (0.2dB max), VSWR 1.15 max, and 50W CW power handling, it is ideal for space and commercial applications. Available with S-F or N-F coaxial connectors, with custom designs and one-year warranty.
- FOB Price
- USD $70.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- 4pcs each box
- Delivery
- 3 Days
Specifications
WR90 (BJ100) - Waveguide to Coaxial Adapter
Design Features
- High RF performance, ultra-competitive price.
- Space and commercial applications.
- Custom design available upon request.
- Support one year standard warranty.
RF Characteristics
| Model Number | UIYWTCWR90A82T125SF UIYWTCWR90A82T125NF |
| Freq. Range (GHz) | 8.2 ~ 12.5 |
| Insertion Loss Max(dB) | 0.2 |
| VSWR Max | 1.15 |
| Connector Type (Waveguide) | WR90 (BJ100) |
| Connector Type (Coaxial) | S-F, N-F |
| CW Power (W) | 50 |
| Peak Power (KW) | 1 |
| Temp.(°C) | -55 ~ +85 |
