Welded Wire Mesh – Galvanized, PVC Coated, and Stainless Steel Fencing

Welded wire mesh is available in a wide range of mesh openings to suit different applications. Smaller openings from 1/4" to 3/8" are used for fine mesh applications such as small poultry cages, insect screens, and plaster support. Medium openings from 1/2" to 3/4" are common for garden fencing, rabbit cages, and light animal enclosures where the mesh needs to contain small animals. Square openings such as 1" x 1" and 1" x 2" are used for general fencing, warehouse partitions, and machine guards, providing good visibility and moderate strength.

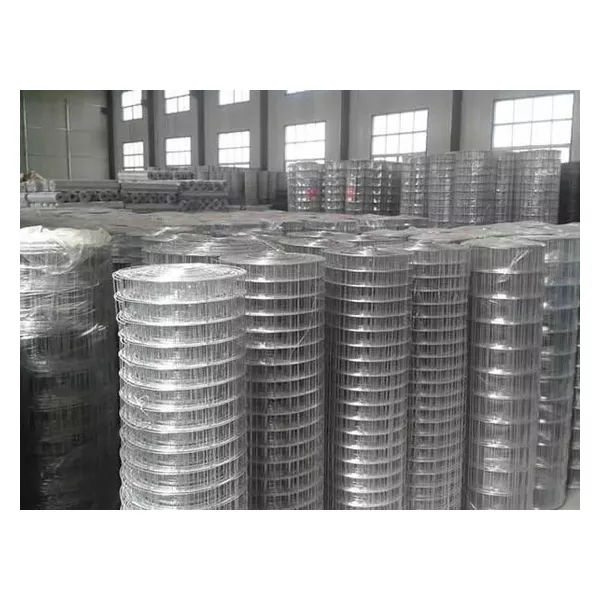

Welded Wire Mesh is made by welding low carbon steel wire, galvanized wire or stainless steel wire at each crossing point. The mesh opening is fixed and the sheet or roll keeps a flat shape during cutting and installation. It is used for fencing, cages, machine guards, garden partitions, construction protection and general industrial use. We can supply electro galvanized, hot dipped galvanized and PVC coated welded mesh. Common roll length is 30 m. Roll width, mesh opening, wire diameter and packing can be made according to order details.

Specifications

Material:Low carbon steel wire, galvanized steel wire, stainless steel wire

Mesh Opening:1/4″ × 1/4″, 3/8″ × 3/8″, 1/2″ × 1/2″, 5/8″ × 5/8″, 3/4″ × 3/4″, 1″ × 1/2″, 1″ × 1″, 1″ × 2″, 1-1/2″ × 1-1/2″, 2″ × 2″, 2″ × 3″, 2″ × 4″, 3″ × 3″, 4″ × 4″

Metric Opening:6.4 × 6.4 mm, 10.6 × 10.6 mm, 12.7 × 12.7 mm, 16 × 16 mm, 19.1 × 19.1 mm, 25.4 × 12.7 mm, 25.4 × 25.4 mm, 25.4 × 50.8 mm, 38 × 38 mm, 50.8 × 50.8 mm, 50 × 75 mm, 50 × 100 mm, 75 × 75 mm, 100 × 100 mm

Wire Diameter:Common light welded mesh uses BWG24 to BWG16. Fencing mesh commonly uses about 1.65 mm to 2.67 mm wire. Heavier gauges available by order.

Welding:Longitudinal and cross wires welded at the crossing points

Edge Treatment:Cut edge or bent ends (confirmed by order)

Surface Treatment:Electro galvanized before welding, electro galvanized after welding, hot dipped galvanized before welding, hot dipped galvanized after welding, PVC coated

PVC Coated Type:Usually made from galvanized welded mesh or galvanized wire core. Finished wire diameter depends on coating thickness.

Roll Width:Galvanized welded mesh usually 0.5 m to 1.8 m. PVC coated welded mesh usually 0.5 m to 1.2 m.

Roll Length:Common 30 m per roll

Packing:Waterproof paper in rolls. Plastic film, carton or pallet packing can be arranged by order.

Custom Size:Mesh size, wire diameter, roll width and packing can be made according to buyer requirement.
