Stainless Steel Wire Mesh

Stainless Steel Wire Mesh – Plain, Twill, and Dutch Weave for Filtration

We supply stainless steel wire mesh for overseas buyers including filtration equipment manufacturers, sieve screen distributors, industrial filter suppliers, and food processing equipment importers. Standard production covers 304, 316, 316L, and 430 grades, with plain weave, twill weave, and Dutch weave options. Mesh counts range from 2 to 500 mesh, with common roll widths of 1.0 m, 1.2 m, and 2.0 m.

Stainless Steel Wire Mesh is made from stainless steel wire for filtration, sieving, screening, ventilation and protection. We supply woven mesh as the main product type. Welded stainless steel mesh can be quoted by order. Plain weave is used for common square opening mesh. Twill weave is used for finer mesh counts. Dutch weave is used for filter media where micron retention is required. Common grades are 304, 316, 316L and 430 (430 is magnetic, used for dry screening and indoor panels). 310S, 2205 and 2507 can be quoted by order. Please confirm mesh count, wire diameter, roll width and material grade before quotation, because these details directly affect aperture, open area and cost.

Specifications

Material:304, 316, 316L, 430 stainless steel (430 is magnetic, with lower corrosion resistance than 304/316); 310S, 2205 and 2507 by order

Product Type:Woven stainless steel mesh (main product), welded stainless steel mesh by order

Weaving Method:Plain weave, twill weave, plain Dutch weave

Mesh Count:2 mesh to 500 mesh for common woven mesh

Wire Diameter:About 1.8 mm to 0.025 mm for the listed plain weave range

Aperture:Depends on mesh count and wire diameter. For example, 20 mesh × 0.30 mm wire has about 0.97 mm aperture.

Plain Weave Sizes:2 mesh × 1.8 mm, 10 mesh × 0.55 mm, 20 mesh × 0.30 mm, 60 mesh × 0.15 mm, 100 mesh × 0.10 mm, 200 mesh × 0.053 mm, 500 mesh × 0.025 mm

Twill Weave Sizes:100 mesh × 0.14 mm, 150 mesh × 0.09 mm, 200 mesh × 0.06 mm, 300 mesh × 0.04 mm, 400 mesh × 0.03 mm, 500 mesh × 0.025 mm

Plain Dutch Weave Sizes:80 × 300, 80 × 400, 50 × 250, 40 × 200, 24 × 110, 20 × 150, 12 × 64 (warp mesh × weft mesh)

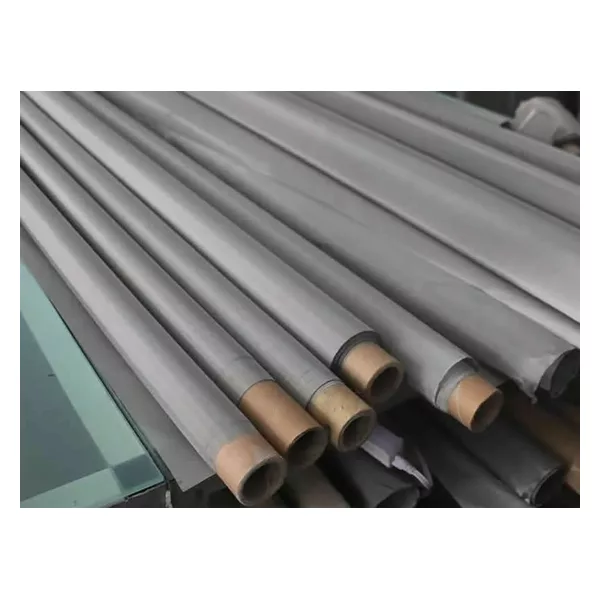

Roll Width:1.0 m, 1.2 m and 2.0 m are common. Wider rolls can be discussed according to mesh count and weaving type.

Roll Length:Common 30 m per roll

Cutting Service:Sheets, strips, discs, filter cones and pleated filter parts can be made by drawing or sample.

Surface:Plain stainless steel surface, no galvanized coating

Packing:Waterproof paper, plastic film, wooden case or pallet packing according to order size

Applications

• Liquid and powder filtration in chemical, food and general processing lines.
• Sieving and screening for powder, granules and small solid materials.
• Ventilation mesh, machine guard, cabinet mesh and equipment protection.
• Filter discs, filter cones, cartridges and other fabricated filter parts.
