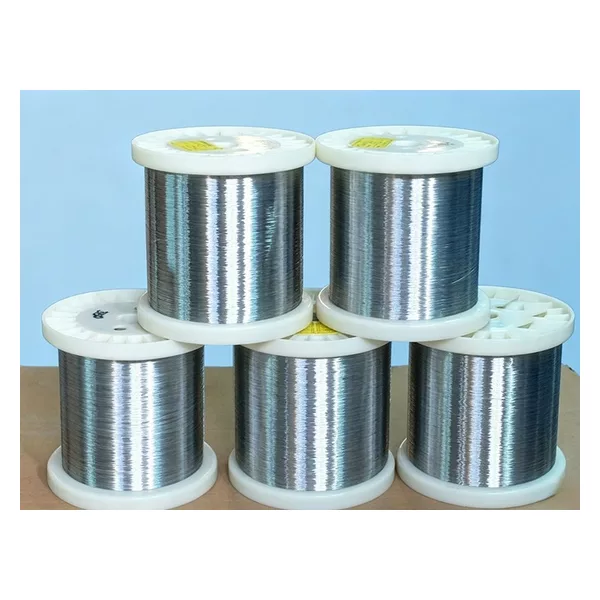

Stainless Steel Wire – 304, 316L, 430 Grades for Mesh and Forming

Stainless steel wire is used for wire mesh weaving, filter screens, flexible hose, wire rope, springs, brush wire, handicrafts, and formed wire products. We supply common grades such as AISI / SUS 201, 202, 302, 304, 304L, 316, 316L, 310S, 321, and 430. The wire can be made in soft, annealed, bright, or hard drawn condition according to the final use. Common diameter range is 0.025 mm to 5.5 mm, but stock availability depends on the specific size and condition—not all diameters are kept as regular stock.

Stainless Steel Wire is used for wire mesh weaving, filter screens, flexible hose, wire rope, springs, brush wire, handicrafts, and formed wire products. We supply common grades such as AISI / SUS 201, 202, 302, 304, 304L, 316, 316L, 310S, 321, and 430. The wire can be made in soft, annealed, bright, or hard drawn condition according to the final use. Common diameter range is 0.025 mm to 5.5 mm, but stock availability depends on the specific size and condition—not all diameters are kept as regular stock. For fine wire, tolerance should be confirmed before production. Grade, diameter, hardness, surface, coil weight, and packing can be arranged according to order details.

Specifications

Product Name:Stainless Steel Wire

Material Grade:AISI / SUS 201, 202, 302, 304, 304L, 316, 316L, 310S, 321, 430

Wire Diameter:0.025 mm to 5.5 mm (availability by size and condition; please confirm stock before ordering)

Wire Condition:Soft, annealed, bright, hard drawn

Surface:Bright surface or other surface by order

Supply Form:Coil wire, spool wire, bobbin wire, or straightened cut wire

Common Use by Grade:304 is used for general mesh and processing. 316 and 316L are used where better corrosion resistance is needed, but they are not absolutely rust-proof in all conditions. 430 is magnetic and mainly used for general forming, craft, and decorative parts.

Fine Wire Tolerance:For wire below 0.50 mm, tolerance can be checked according to diameter and order requirement. Example: 0.020-0.049 mm wire can be controlled around +0.002 / -0.001 mm when confirmed before production. For diameters above 0.50 mm, tolerance should be confirmed by order.

Chemical Composition:According to confirmed AISI / SUS grade and mill certificate

Packing:Plastic spool, coil, wooden spool, carton, pallet, or export packing by request

Order Note:Please confirm grade, diameter, wire condition, tolerance, tensile requirement, packing, and final use before quotation.
