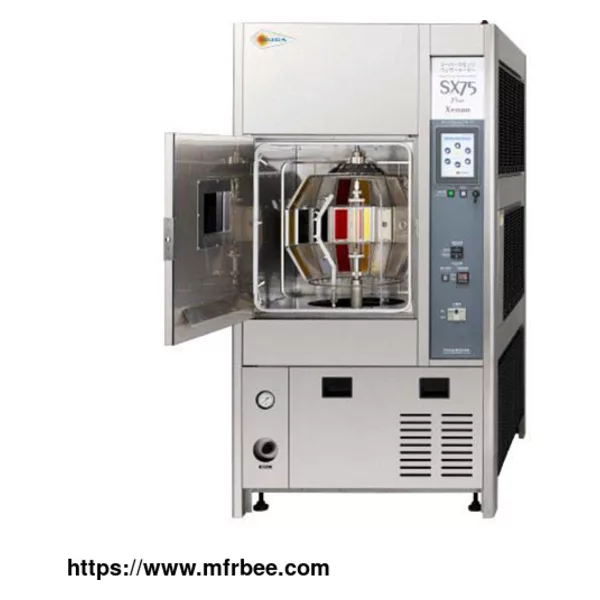

The SUGA SX75 7.5kW Super Xenon Weather Meter is an advanced, ultra-accelerated aging system engineered to artificially reproduce extreme indoor and outdoor environments. By simulating the combined effects of solar radiation, temperature, humidity, and rainfall, this instrument allows you to predict the service life of materials with unprecedented speed. The SX75 distinguishes itself by delivering an irradiance of up to $180\text{W/m}^2$ (in the 300-400nm range)—triple the intensity of natural sunlight—meeting the rigorous testing demands of today's fast-paced product development cycles.

Applications

SUGA SX75 7.5kW Super Xenon Weather Meter is designed to artificially replicate indoor and outdoor environments—such as sunlight, temperature, humidity, and rainfall—to accelerate the aging of products and materials, thereby predicting their service life.

This model delivers irradiation levels up to three times that of solar ultraviolet light (180W/m²), meeting the demands of today's rapidly evolving products.

Standards

ISO 4892-2: Plastics—Methods of exposure to laboratory light sources (Xenon-arc lamps).

ASTM G155: Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Nonmetallic Materials.

SAE J2527 / J2412: Performance-based exposure of automotive exterior and interior trim using a controlled irradiance xenon-arc apparatus.

JIS D0205: Test of weatherability for automobile parts.

JASO M346: Light-exposure test method for automotive interior parts.

AATCC TM16.3: Colorfastness to light (Xenon-Arc).

GB/T 16422.2: Plastics—Methods of exposure to laboratory light sources—Part 2: Xenon-arc lamps.

Features

Ultra-Accelerated Aging: You can achieve testing speeds up to three times faster than standard xenon testers, significantly reducing the R&D cycle for new materials.

7.5kW Water-Cooled Stability: The high-power water-cooled lamp ensures stable irradiance even at maximum output, preventing spectral shifts that can occur in less powerful air-cooled systems.

Precision Environmental Control: The SX75 offers a tighter tolerance for BPT ($\pm 1^\circ\text{C}$) and chamber temperature, providing the high level of repeatability required for scientific research.

Complex Moisture Simulation: Beyond simple rainfall, the dual spray and rear spray functions allow you to simulate the specific effects of evening dew and backside condensation.

High-Irradiance BPT Management: Even at $180\text{W/m}^2$, the sophisticated airflow and cooling systems allow you to maintain a Black Panel Temperature as high as $95^\circ\text{C}$ for specialized heat-resistance testing.

Parameters

Light source	One 7.5-kW water-cooled xenon arc lamp
Test types	Light only,Light&Spray on front face(Rain),Dark only,Dark&Spray on back face(Dew),Dark&Spray on both faces
Irradiance	60 W/㎡to 180W/㎡ at 300nm to 400nm (Filter requirement example;quartz inner filter and#295 outer filter)
Temperature and humidity range	Light test:50℃to 95℃±1℃of black panel temperature(BPT;depending on the level of irradiance); 50%rh to 60%rh±5%rh(at 63℃of BPT and 180W/㎡)
Dark test:38℃±1℃of chamber temperature; 95%rh±5%rh
Quantity of specimen	Maximum 54 pieces(Specimen size:150mm x70mm,1mm thick)
Electrical requirements	Three-phase,200V,approx.74A
External dimension	Approx.Width 105cm,Depth 135cm,and height 204cm (Weight:approx.570kg)
Related standards	ISO,ASTM,SAE,JIS,and JASO(subject to different accessories) Simultaneous BPT and CT control(SAE)available.
