Steel Framed Shake Shaker Screen

Shale shaker screens are essential filtration elements used in oil and gas drilling, mining operations, and industrial wastewater treatment. Their primary function is to remove drilled cuttings, sand, and solid particles from drilling fluid, ensuring stable mud circulation, reduced equipment wear, and improved drilling efficiency.

hexagonal steel frame shale shaker screen 630×1250 mm stainless steel mesh for oilfield solids control

Specifications & Dimensions

• Screen Type: Hexagonal hole steel frame
• Mesh Material: 304 / 316 stainless steel multi-layer
• API Rating: API 60 – API 270
• Panel Size: 585 × 1165 mm, 630 × 1250 mm, 700 × 1050 mm
• Open Area: 40–45% effective filtration area
• Characteristics: Strong against vibration, ideal for high-viscosity mud

pyramid shaker screen replacement for fc 500 corrugated composite panel API 70-325

Specifications & Dimensions

• Screen Style: Pyramid / corrugated panel
• Material: SS304 & SS316 mesh with composite backing
• API Rating: API 70 – API 325
• Panel Size: 710 × 626 mm (FC 500) or 1230 × 635 mm (FC 600)
• Design Benefit: +25% screening surface compared to flat screens

steel frame shaker screen with 7 support bars API 60-325 high-strength rectangular panel for drilling mud system

Specifications & Dimensions

• Frame Material: High-strength carbon steel + powder coating
• Mesh Material: 304/316 stainless steel
• Support Structure: 7 reinforced vertical support strips
• API Rating: API 60 – API 325
• Panel Size: 585 × 1165 mm, 630 × 1250 mm, or customized
• Bonding Type: Pre-tensioned and epoxy bonded
• Applications: High-load drilling rigs, offshore platforms

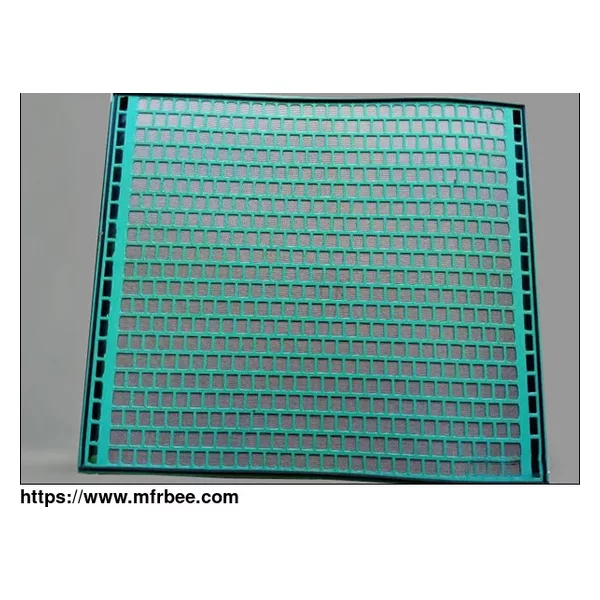

composite shaker screen green frame 1050×695 mm with rectangular mesh for solids control shale shaker

Specifications & Dimensions

• Frame Type: Composite polymer frame
• Mesh Material: SS304 / SS316 multi-layer mesh
• API Rating: API 60 – API 230
• Mesh Pattern: Rectangular bonded mesh
• Panel Size: 1050 × 695 mm or 1250 × 750 mm
• Frame Color: Green corrosion-resistant epoxy finish
• Advantages: Lightweight, long screen life, lower replacement cost
