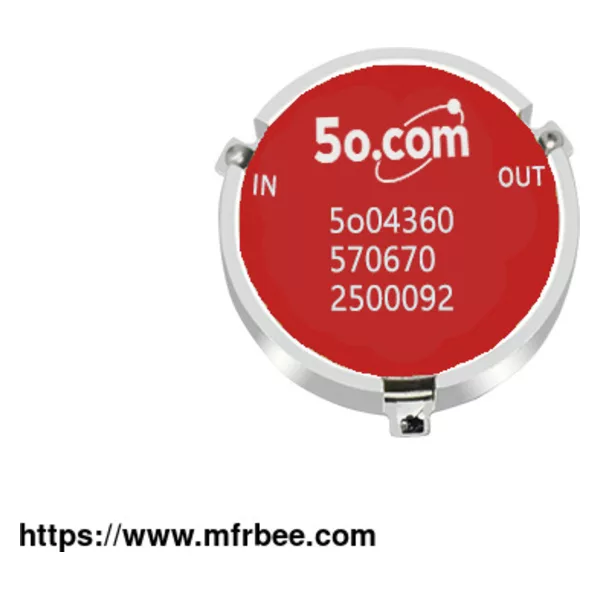

5o04360 200–1875MHz Surface Mount Isolator
Product Quick Detail
Protect your sensitive RF components with the 5O04360 Surface Mount Isolator. Covering 200-1875MHz, this isolator offers superior isolation (15dB min), low insertion loss (0.65dB max), and handles 200W forward power. Ideal for 4G/LTE, 5G, public safety, and military communications. Features a compact surface mount package and wide -40°C to +85°C operating temperature.
- FOB Price
- USD $10.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 12
- Delivery
- 15 Days
Specifications
Detailed Application Areas:
- Wireless Infrastructure: Protects power amplifiers in 4G/LTE and 5G base stations from antenna mismatch and VSWR spikes, ensuring uninterrupted cellular service
- Public Safety Systems: Provides critical transmitter/receiver isolation in emergency communication networks, and police and fire department radios
- Military Communications: Safeguards transceivers in tactical radio systems and SATCOM terminals against damage in demanding field environments
- Satellite Communications: Ensures signal integrity in L-band and S-band ground stations and mobile terminals
- Test & Measurement: Serves as essential protection for signal generators and power amplifiers during RF component testing and production line validation
Product Features:
- Frequency Range: 200–1875MHz
- High Isolation: Minimum 15dB between ports, up to 30dB
- Excellent Matching: Maximum VSWR of 1.45
- Low Insertion Loss: Maximum 0.65dB
- Power Handling: 200W forward and 10W reverse power
- Connection Type: Surface Mount
- Operating Temperature: -40°C to +85°C
- Country: China (Mainland)
- Business Type: Passive component
- Market: United Kingdom，Austria，Bulgaria，Croatia，Cyprus，Czech Republic，Denmark，Estonia，Finland，France，Germany，Greece，Hungary，Ireland，Ital
- Founded Year: 2025
- Address: Unit A701V63, Building 1 Shenzhen Software Industry Base No. 81
- Contact: Kelly Hu
