Main Parameters
· Working area: 500*300mm (19.6*11.8in)
· 40W/60W CO2 High grade
· Engraving Speed: 1000mm/s
· Positioning Precision: ±0.01mm
Product description

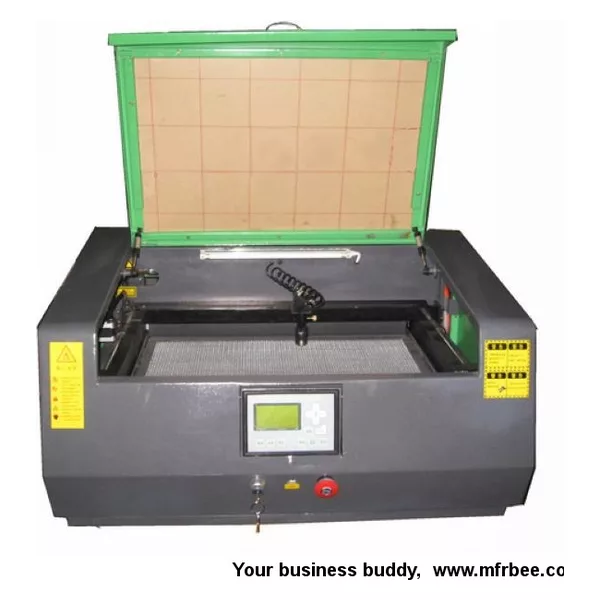

1. The mini machine, occupy limited place, the best choice for arts and crafts.
2. DSP control software, high speed, stable performance, and easy to operate.
3. Be equipped with high-speed motor and driver,
which make equipment work more stable and higher accuracy.
4. Elegant design, easy to learn and operate.
5. Motorized up and down platform, be applicable for different materials. Applicable industry
Advertisement, arts and crafts, toys, garments, model, building upholster, computerized embroidery and clipping, packing and paper industry, etc.
Applicable materials
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other nonmetal materials.
Technical parameter
Laser Generator | sealed CO2 laser tube, water-cooling, 10.6um or RF tube |
Laser Power | 40W/60W |
working area | 500*300mm (19.6*11.8in) |
Positioning Precision | ±0.01mm |
Control System | Speedy DSP |
Supporting Format | plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw |
Engraving Speed | 1000mm/s |
Cutting Speed | 500mm/s |
Interface | LCD Screen and USB interface |
Working Voltage | AC220V ±10%,50Hz |
Running Environment | Temperature: 0-45°, Humidity: 5%-95% |
Warranty | One year, except consumable goods |
Support | by calling or email or training |
