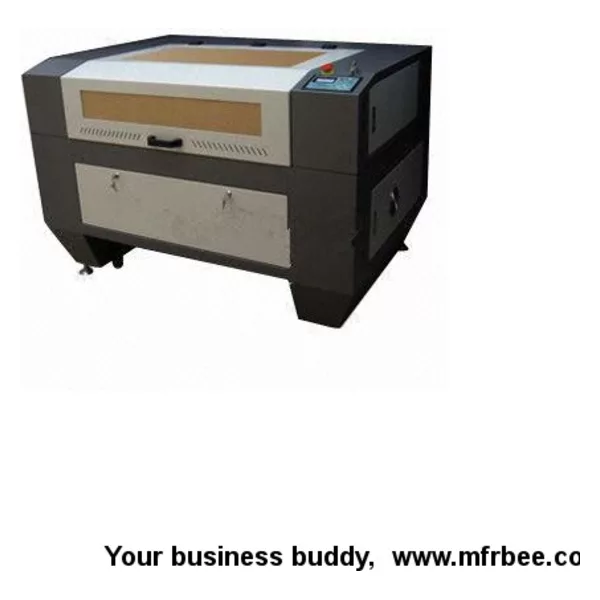

ZM9060 Laser Engraving Machine
Product sourcing details
- Place of Origin
- Shandong China
- Packaging
- Container
Supplier: Shandong China Coal Industry & Mining Group
Purchasing information
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications
Main Parameters
· Working area: 900mm×600mm.
· Laser Power: 60W, 80W, 100W for option.
· Engraving Speed: 500-700mm/s.
· Positioning Precision: ±0.01mm.
Features:
1.The cutting edge is smooth, no sawtooth, with tighten working range without much materials waste, which can save the cost.
2.Reasonable blowing ventilation system, can meet many manufacturer of material
3.The working area can designed according to the customer`s request
4.Standard belt transmission, the optional equipment-automatically roller
5.Stable design of laser line, ensure the output laser power at different place consistent
Technical parameters:
Laser generator | Sealed co2 laser tube, water cooling, or RF tube |
Laser power | 60W, 80W, 100W for option |
Working area | 900mm×600mm |
Position precision | ±0.01mm |
Control system | Speedy DSP+ offline , LCD screen and USB interface |
Supporting format | Plt dst dxf bmp dwg al las, support AutoCAD, CoreDraw |
Engraving speed | 500-700mm/s |
Machine Control and Drive | Speedy DSP controlling, stepper motor |
Working voltage | AC220V ±10%,50HZ |
Consuming power | 1200W |
Warranty | One year, expect consumable goods |
Technical support | By calling or email or training |
