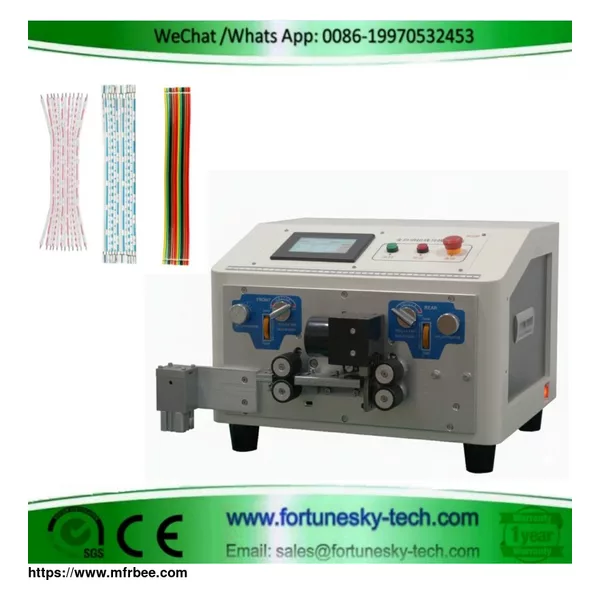

Automatic Ribbon Cable Splitting Cutting Stripping Machine
Product sourcing details
Automate ribbon cable processing with the FY805P Automatic Ribbon Cable Splitting, Cutting & Stripping Machine. This CNC controlled machine handles wire core sizes from 0.105mm up to 12 cores, cutting lengths from 0.1-99999.99mm, and stripping lengths up to 30mm. Features include touch screen operation, utility knife scoring for smooth splitting, adjustable splitting length, and programmable memory for up to 99 programs. Ideal for high-volume production, reaching 800-1500 pcs/hour.
- Place of Origin
- China
- FOB Price
- USD $1,999.00 / Piece
- Packaging
- Plywood Box
Supplier: Shenzhen Fortune Sky Technology Co.,Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 3 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Automatic Ribbon Cable Splitting Cutting Stripping Machine
Features
Full touch screen computer numerical control debugging allowing for digital operation of wire length singleend stripping doubleend stripping singleend splitting doubleend splitting singleend drop and doubleend drop The interface is simple and easy to understand
Utility knife blade scoring type splitting which results in smoother splitting without burrs
A cylinder and roller are designed to pull the wire for splitting allowing for unrestricted and easy adjustment of the splitting length
The splitting structure is independently framed making it simple to disassemble and assemble
Technical Parameters
Equipment Name Automatic Ribbon Cable Splitting Cutting Stripping Machine
Wire Core Size 0105 mm 12 cores
Model No FY805P
Cutting Length 01999999 mm
Power Supply AC220V 5060Hz
Stripping Length Front 00130 mm
Dimensions L520 mm x W465 mm x H350 mm
Stripping Length Back 00130 mm
Weight 40 kg
Splitting Length Arbitrary adjustment
Total Power 880 W
Display 43inch color screen
Rated Power 400 W
Blade Material Tungsten steel Highspeed steel
Capacity per hour approx 8001500 pcs
Stripping Precision Silent hybrid stepper motor 001 mm
Auxiliary Functions Automatic wire feedingunloading timed start jog adjustment
Program Storage No 0099 onekey copy onekey read custom name
